-> Protective structure IP67
-> Any adjustments are not required
-> Fast response time and high repeatability
-> In conformity with EMS directive
-> Common use for Dark-ON/Light-ON
Case Study
Specification
Kind
Through-beam type
Model No.
FBX-25JC
FBX-25JA
FBX-25DC
FBX-25DA
Power source
12 to 24VDC（＋10％, -10％, Ripple 5% or less）
Current consumption
20mA or less
25mA or less
35mA or less
40mA or less
Light source
Infra-red LED（880nm）
Distance between projector and receiver
25mm(1-beam)
25mm(2-beam)
Detectable objects
Opaque object with φ1mm or more
Operating mode
Changeover by control wire(FBX-25JC/25JA : Pink, FBX-25DC/25DA : Pink or Purple)
Light-ON : Connected to +V side(Brown),
Dark-ON : Connected to 0V side(Blue)
Control output
NPN
PNP
NPN
PNP
Allowable load voltage : 33V or less,
Allowable load current : 100mA or less, Residual(ON)
voltage : 1.0V/100mA or less, 0.5V/10mA or less
Response time
1msec or less
Repeatability
±0.1mm
Indicators
Power lamp : Green LED(Lights up when power-ON),
Light-entering lamp : Orange LED(Lights up when light-entering)
Connection
Cable type(2m long, 0.2mm2, 4-core vinyl cable with oil-proof and cold-proof )
Cable type(2m long, 0.2mm2, 6-core vinyl cable with oil-proof and cold-proof cable)
Ambient illuminance
Sun light : 10,000lx or less, Incandescent lamp : 5,000lx or less
Ambient temperature/humidity
-25 degrees C to ＋55 degrees C（-30 to 70 degrees C when stored）, 45 to 85％RH(Not icing)
Vibration resistance
Double amplitude 1.5mm, 10 to 55Hz, Each 2 hour in X, Y and Z directions
Impact resistance
500ｍ/s2, Each 3 time in X, Y and Z directions
Protective structure
IP67(IEC standard)
Case material
Polycarbonate
Weight
Approx. 60g
Approx. 65g
External dimension
External dimension
I/O Circuit

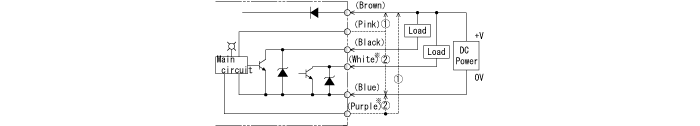

NPN output type
Operating mode changeover
(Pink, but pink/purple in case of 2-beam type)
* Provided to 2-beam type only

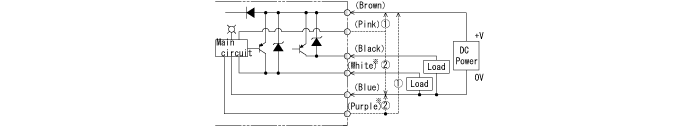

PNP output type
1. Output transistor ON when light-entering(connected to +V side)
2. Output transistor ON when light-interruption(connected to 0V side)

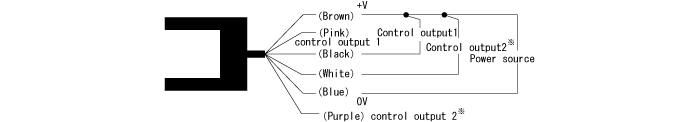

Connection
* Provided to 2-beam type only
