EWF-0/1E-N
Optical Data Transmission DeviceOpen Network (Serial)
OPTICAL DATA TRANSMISSION DEVICE
Overview
Features
-> 100Mbps optical repeater that can connect to the Ethernet line directly.
-> Setting of MAC address or IP is not required and it can be used as LAN cables.
-> Non-contact communication is available for up to 100m between moving devices.
*This model integrates the conventional model.
-> Setting of MAC address or IP is not required and it can be used as LAN cables.
-> Non-contact communication is available for up to 100m between moving devices.
*This model integrates the conventional model.
Model
Model No. | Code No. | Transmission distance |
EWF-0EA-N | WEWF055 | 50m |
EWF-0EB-N | WEWF056 | |
EWF-1EA-N | WEWF053 | 100m |
EWF-1EB-N | WEWF054 |
Mounting bracket (sold separately)
Model Name | Code No. | Remarks |
Mounting bracket | WZ00029 | Mounting bracket for one unit |
Specification
Model No. | EWF-0EA-N/0EB-N | EWF-1EA-N/1EB-N |
Transmission distance | 50m | 100m |
Directional angle | Full angle 1.4° | Full angle 1° |
Power source | 24VDC(±10%) | |
Current consumption | 120mA(24VDC) | |
Transmission system | Full-duplex two-way transmission | |
Transmission speed | 100Mbps | |
Laser safety standard | Class 1 | |
Interface | Ethernet | |
Communication standerd | IEEE802.3u 100BASE-TX Auto-negotiation compliant | |
Modulation system | Direct modulation | |
Connection | Mini clamp connector(Power/CD signal),Modular jack RJ-45(Ethernet) | |
Ambient temperature/humidity | -10℃ to +50℃,85%RH or less(non icing) | |
Ambient illuminance | 10,000lux or less(Halogen/mercury lamp) | |
Impact resistance | 490m/s2, Each 10 times in X, Y and Z directions | |
Vibration resistance | Double amplitude 1.5mm,10 to 55Hz,each 2 hours in X, Y and Z direction | |
Protective structure | IP40 | |
Reception output(CD) | Photo-coupler open-cellector(Withstand pressure 35V), ON when receiving light(Max.50mA, residual voltage 1.5V) | |
Level voltage output (Analog output) |
Approx.0 to 3V, connector S2B-PH-K-S(JST) This is available only when adjusting the optical axis. External wiring is forbidden. |

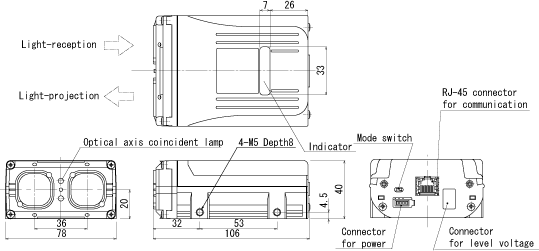

External dimension
External dimension

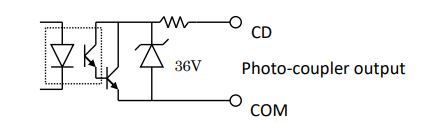

I/O Circuit

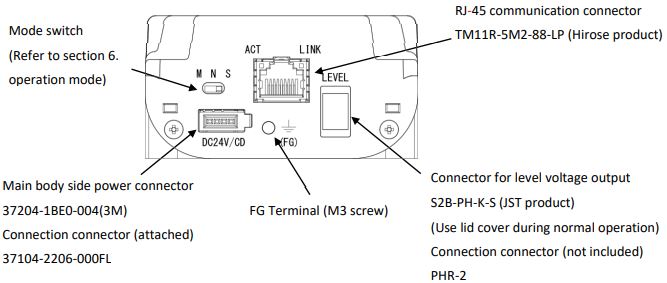

Connection
Power connector
Reception light output (CD) photocoupler open-collector withstand voltage 36V, maximum 50mA, residual voltage 1.5V
Connection connector (attached) 37104-2206-000FL
*The compatible wire for the attached connector has the following dimensions. When using wires other than these, prepare a connector that is compatible with the wires to be used.
AWG 20~22 Finished outline (mm) 1.6~2.0
Connection connector (attached) 37104-2206-000FL
*The compatible wire for the attached connector has the following dimensions. When using wires other than these, prepare a connector that is compatible with the wires to be used.
AWG 20~22 Finished outline (mm) 1.6~2.0
Pin No. | Signal | I/O circuit |
1 | COM | Light reception output ON when receiving light |
2 | CD | |
3 | -VIN (0V) | Power supply input |
4 | +VIN (24VDC) |
Ethernet connector
Pin No. | MDI Signal | Signal Function |
1 | TD + | Transmission Data (+) |
2 | TD - | Transmission Data (-) |
3 | RD + | Reception Data (+) |
4 | ---- | Not Used |
5 | ---- | Not Used |
6 | RD - | Reception Data (-) |
7 | ---- | Not Used |
8 | ---- | Not Used |
Level voltage output connector
Pin No. | Signal |
1 | LEVEL |
2 | GND |
If necessary, please contact us separately.
