ISP-A1C

Overview

Features

-> It can transmit signals with 16 points max./unit for both input and output.
-> It can extend up to 128 points max. by increasing units.
-> It can make a high-speed transmission with 62.5kbps.
-> It can make a DIN-rail mounting with 35mm pitch.

Specification

Model No.		ISP-A1C^*(Main and sub unit)
Power source		18 to 30VDC(ripple10% or less),100mA(except for photo-coupler interface)
Current consumption		Input 85mA or less, output 850mA or less
Serial interface	Type	RS-422 and RS-485
	Transmission method	Full-duplex two-way transmission system
	Transmission speed	62.5k/19.2k/9,600/4,800/2,400bps(Changeover)
	Transmission distance	Host communication: 500m(Total length) Local communication: 2mMAX. (Between stations)
Parallel interface	Input signal numbers	16 points(It can extend up to 128 points by increasing units)
	Input circuit	Photo-coupler isolation Input voltage: 18V to 30VDC(Using voltage is supplied from inside) Input current: 5mA/1 point, 85mA/1 unit
	Output signal numbers	16 points(It can extend up to 128 points by increasing units) 1 point(Alarm output)
	Output circuit	Photo-coupler isolation Input voltage: 18V to 30VDC(Using voltage is supplied from inside) Input current: 50mA/1 point, 85mA/1 unit
Ambient temperature/humidity		-10 to +50 degrees C, 85%RH or less
Connection		Screw terminal for power source, connector for the others
Case		ABS resin(body), polycarbonate resin(cover)
Weight		Approx. 260g

* Use this device with BWF series. If CWF series, use ISP-A1C-C.

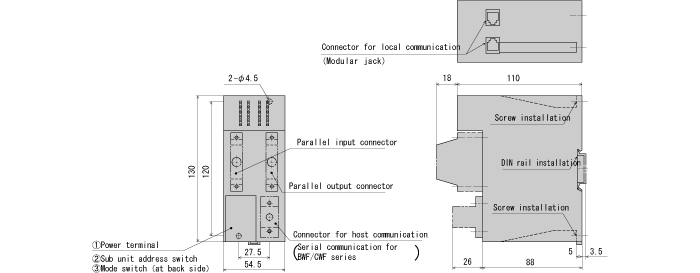

External dimension

I/O Circuit

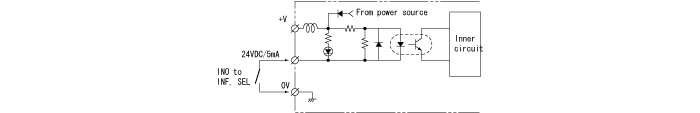

Parallel input

+V is supplied from +24V. 0V is common use for power terminal 0V.

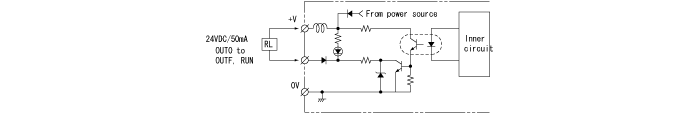

Parallel output

+V is supplied from +24V. 0V is common use for power terminal 0V.

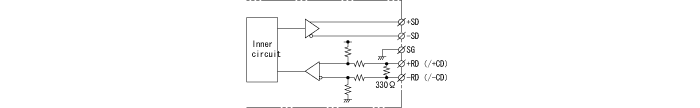

Serial input/output

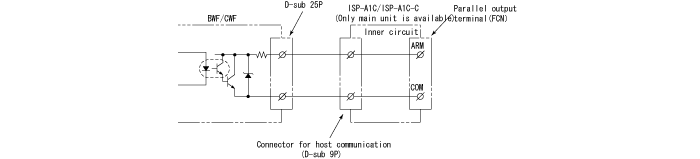

Warning output

Connection /Parallel input

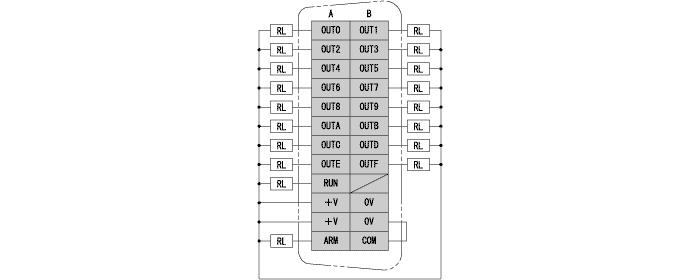

Connection /Parallel output

* Ask us about details specifications.
