Products Detail
PGL-050W3/180W3
Photoelectric SwitchLaser Distance Measurement
NEW 180m Distance
Laser Distance Measurement
Long distance type laser sensor
PGL-050W3: Direct reflection 50m
PGL-180W3: Retro-reflection 180m*1
*1Direct reflection is 100m
Overview
Features
High accuracy and Long distance.
Laser Distance Sensor
It has two operation modes, distance data output and distance setting output.
Laser Distance Sensor
It has two operation modes, distance data output and distance setting output.
High accuracy
Accuracy ± 3mm
Repeated accuracy ± 0.7mm
Repeated accuracy ± 0.7mm
Long distance
PGL-050W3: Direct reflection 50m
PGL-180W3: Retro-reflection 180m*1
*1Direct reflection is 100m
PGL-180W3: Retro-reflection 180m*1
*1Direct reflection is 100m
Two points of distance setting output
It has a transistor output which outputs at a distance set in two stages.

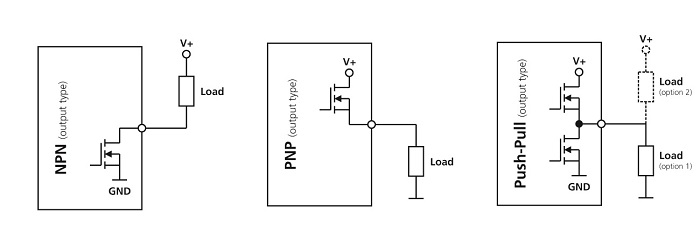

Switchable to PNP, NPN and Push-pull with one unit.
It is not necessary to select model by output type.
Switchable to PNP, NPN and Push-pull with one unit.
It is not necessary to select model by output type.

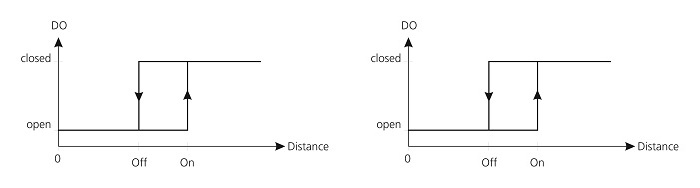

Distance setting output hysteresis
Hysteresis can be set in 0.1mm increments for distance setting output.
Filter function
It has a moving average filter, a spike suppression filter and an error suppression filter.
It is strong against noise or error data.
It is strong against noise or error data.
Interface
Various interface is available such as RS232C, RS422, RS485 and SSI.

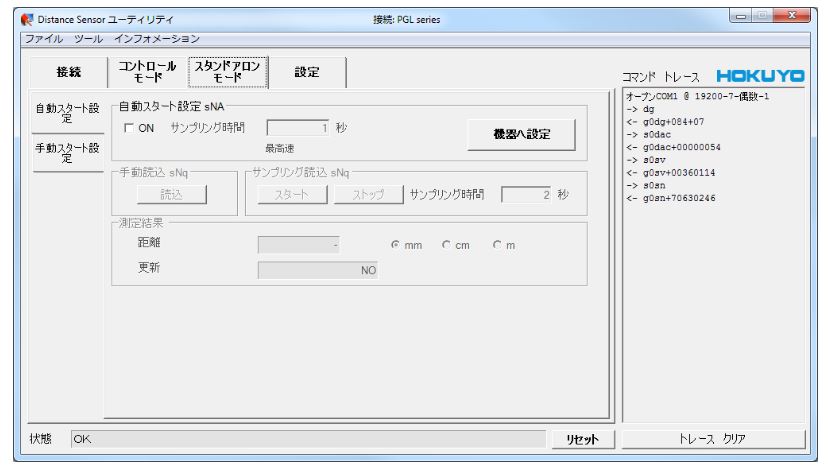

Application software
The device can be connected to the application software by USB.
Reading various settings and errors, command simulation is possible.
Reading various settings and errors, command simulation is possible.
Case Study
Model
Model No. / Part No.
| Model No. | Part No. | Distance |
| PGL-050W3 | RPGL001 | 50m |
| PGL-180W3 | RPGL002 | 180m |
| Reflector for PGL-180W3 | RRRL006 | Size: 210×297mm |
| Reflection sheet for PGL-180W3 | RRRL005 | Size: 600×1200mm |
Specification
| Model No. | PGL-050W3 | PGL-180W3 |
| Supply voltage | 12～30VDC（0.15A＠24VDC) | |
| Light source | Red Laser（650nm） Class 2（IEC 60825-1; 2014) | |
| Spot size | 10m:7×3mm ,50m:28×13mm ,100m:55×30mm | |
| Detection distance（without reflector） | 0.05～50m | 0.05～100m |
| Detection distance（with reflector） | No reflector | 0.5～180m |
| Accuracy ２σ（1σ） | ±3（±1.5）mm | |
| Repeated accuracy ２σ（1σ） | ±0.7(±0.35）mm | |
| Speed | Max.100Hz | |
| Digital input | Start・Stop input Switch digital output to input |
|
| Digital output | Distance setting output 2points、Error output 1point Switchable to NPN,PNP,Push-Pull |
|
| Serial interface | RS-232/422/485, SSI | |
| USB interface | Only for setting | |
| LED display | Four LEDs | |
| Ambient temperature | -10℃～50℃ | |
| Vibration resistance | EN600068-2 (1995-04) | |
| Shock resistance | EN600068-2-27 (1993-03) | |
| Protective structure | IP65（IEC60529） | |
| Material | Aluminum diecasting | |
| Dimensions(W×D×H) | 140 x 78 x 48 mm | |
| Weight | 350 g | |
External dimension
External Dimensions
I/O Circuit

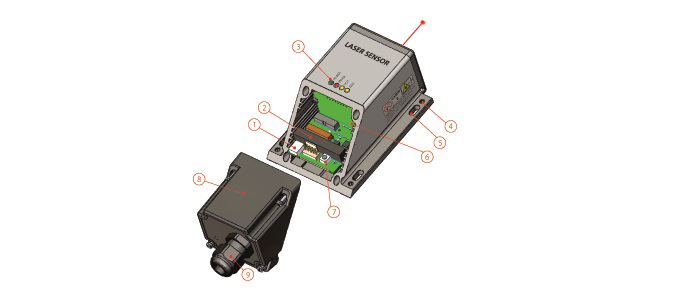

Structure
①USB(Mini-B) ②External connection screw terminal ③LED display ④Angle adjustment screw ⑤Mounting hole
⑥Shield terminal ⑦Reset button ⑧Terminal cover ⑨Cable ground
Connecting to external connection screw terminal
⑥Shield terminal ⑦Reset button ⑧Terminal cover ⑨Cable ground
Connecting to external connection screw terminal

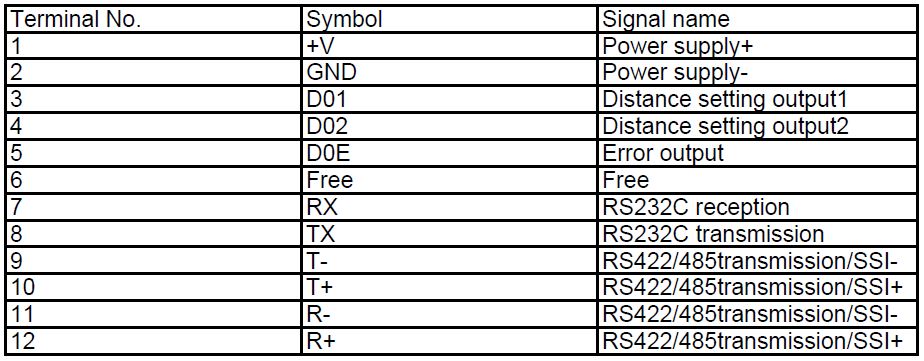

External connection terminal
Downloads
Before Download
Only members can download the file.
If you have not registered as a member, please register as a member by clicking the "Registration".
If you are already a member, please agree to the following terms and click the "Agree".
If you have not registered as a member, please register as a member by clicking the "Registration".
If you are already a member, please agree to the following terms and click the "Agree".
License for Downloading Materials
When downloading the product specifications, drawings and various types of materials and software related to the Hokuyo's product line, please read the terms of use in advance and then utilize the same with your understanding and consent. In case of dissent, please understand that you cannot register to and be recognized in the download page. (And the Terms of Use may be revised without prior notice.)
Terms of Use
- Intellectual Property Rights
-
- Copyrights and the other rights to contents such as sentences, data and software published on this Website (hereinafter referred to as "Contents") are held by Hokuyo or its suppliers.
- The secondary application (copy, diversion, defacement, analysis, transmission, assignment, rental, licensing, and usage for the purpose of business activities or commercial gain) of the Contents on this Website posted by Hokuyo is strictly prohibited without our prior approval. Specific terms of use described for each download site or Contents shall apply in preference to the Terms of Use.
- Provision of the Contents on this Website by Hokuyo means neither a transfer of the patent rights, design rights, and/or the other intellectual property rights to inventions and designs in the Contents, nor a grant of any rights based on the intellectual property rights.
- Disclaimer
-
Hokuyo pays full attention to the information that appears on this Website, but does not take responsibility for the following items:
- The information that appears on this Website is always the latest version, and is updated or corrected timely and properly;
- The information that appears on this Website is accurate, useful and safe;
- Customer's damage incurred by the use of this Website, including changes or deletions of the information, discontinuation or suspension of the publication; and
- Any and all damage incurred by using this Website.
Download List
| Category | File name | File size | Date modified | Download |
|---|---|---|---|---|
|
PGL User's Manual
|
---
|
2023-10-04
|
|
|
PGL Application Software Ver. 2.52
|
---
|
2023-10-04
|
|
|
|
PGL Firmware Ver.4.1 / Interface Ver.1.21
|
---
|
2023-10-04
|
|
|
2DCAD_PGL-050W3_180W3(dxf)
|
---
|
2022-08-18
|
|
|
3DCAD_PGL-050W3_180W3(IGES/STEP)
|
---
|
2022-08-18
|
