UAM-05LP-T301/T301C
Scanning RangefinderSafety Laser Scanner
World`s smallest Safety Laser Scanner A compact design for installation on AGVs, AGCs as well as in vertical guarding applications. Conformity Standards IEC61496-1/3 : Type3 IEC61508 : SIL2 ISO13849-1 : PL d Category3
Overview
Features
-> Protection zone : 5m 270°
-> Data Output via Ethernet
-> Master-Slave Function
-> Dual Protection
-> Encoder Input
-> Data Output via Ethernet
-> Master-Slave Function
-> Dual Protection
-> Encoder Input

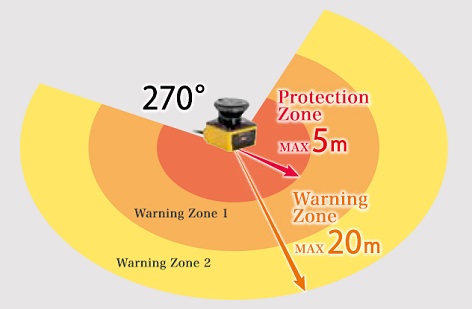

Protection over a Wide Range
Up to 5 meters of protection zone and 20 meters of warning zone configuration to suit various application requirement.

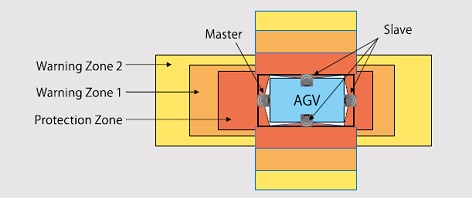

Master-Slave Function
Maximum 4 units of UAM can be interconnected for Master-Slave operation when multiple units are required to guard the hazardous area. The system can be controlled by connecting the input and output signals to Master unit only.
Important Note: It is not possible to control the actuators via master-slave bus communication.

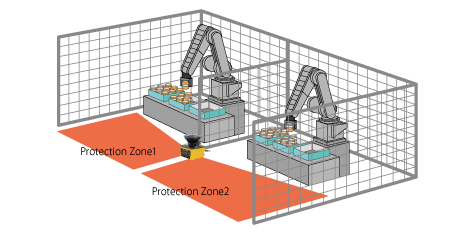

Dual Protection Mode
UAM can simultaneously protect two hazardous areas. Separate OSSD signals are triggered for the respective protection zones making it possible to guard two machines with a single UAM.
Model
* Sensor unit
| Model Number | Code Number | Cable type | Notes |
| UAM-05LP-T301 | UUAM005 | Flying cable 3m | |
| UAM-05LP-T301C | UUAM006 | Cable 0.3m with waterproof connector |
The connector cable is required. Please see the Extension cable line-up in the option list. |
* Extension cable for flying cable type UAM-05LP-T301 (Option)
| Model Number | Code Number | Length | Notes |
| UAM-5C10 | UZ00066 | 10m | Bare cable |
| UAM-5C20 | UZ00067 | 20m |
* Extension cable for connector type UAM-05LP-T301C (Option)
| Model Number | Code Number | Length | Notes |
| UAM-5C02C | UZ00081 | 2m | UAM-05LP-T301 requires 1 cable each |
| UAM-5C05C | UZ00082 | 5m | |
| UAM-5C10C | UZ00083 | 10m | |
| UAM-5C20C | UZ00084 | 20m |
* USB cable (Option)
| Model Number | Code Number | Length | Notes |
| UAM-MUSB | UZ00065 | 1m | For Area configuration |
* Ethernet cable (Option)
| Model Number | Code Number | Length | Notes |
| UAM-ENET | UZ00062 | 3m | Necessary for distance data output |
* Bracket (Option)
| Model Number | Code Number | Mounting position | Notes |
| UAM-BK03 | UZ00059 | Base mounting | |
| UAM-BK04 | UZ00060 | Rear mounting | |
| UAM-BK05 | UZ00061 | Cover bracket | For protection of the optical window used in combination with UAM-BK03 or BK04 |
* Optical window (Option)
| Model Number | Code Number | Notes | |
| UAM-W002 | UZ00064 | For replacement when damaged and only to be fitted by approved personnel | |

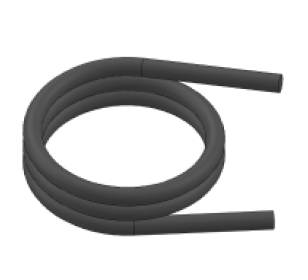

Extension bare cable
Bare cable is for UAM-05LP-T301

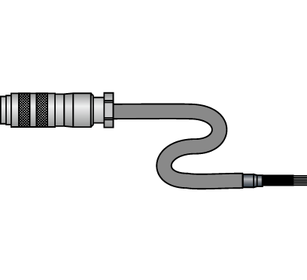

Extension connector cable
Connector cable is for UAM-05LP-T301C

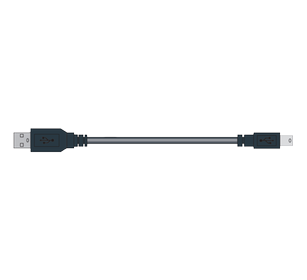

USB cable : UAM-MUSB
Ethernet cable : UAM-ENET

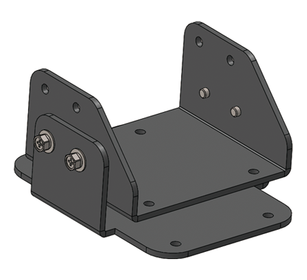

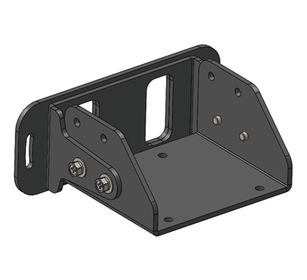

Base mounting bracket
UAM-BK03

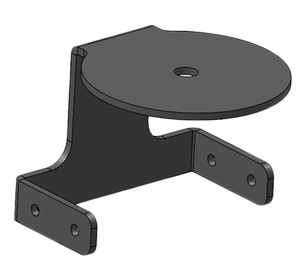

Rear mounting bracket
UAM-BK04
Cover bracket
UAM-BK05

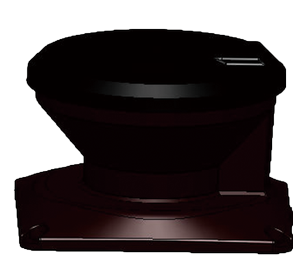

Optical window
UAM-W002
Specification
| Subject | Specifications | |
| Model | UAM-05LP-T301 | |
| Detection Property | Protection Range | Max: 5m |
| Warning Range | Max: 20m (Non-safety)*1 | |
| Distance Tolerance*2 | +100mm | |
| Detection Capability | From Black-Reflector sheet(1.8%) to Retro- Reflector Sheet | |
| Detection Range | 270° | |
| Minimum Detectable Width | φ30mm (Max : 1.8m) | |
| φ50mm (Max : 3.0m) | ||
| φ70mm (Max : 5.0m) | ||
| Scan Frequency | 30ms (Rotational Speed 2000rpm) | |
| Area Pattern | MAX 32 patterns | |
| Response Time | OFF : 60ms ～ 510ms | |
| ON : 270ms ～ 510ms | ||
| Optics | Element | Pulsed Laser Diode |
| Wavelength | 905nm | |
| Safety class | Laser Class 1 | |
| Type | Type 3 (IEC61496-1,IEC61496-3) | |
| Functional Safety | SIL 2(Type B, HFT=1) (IEC61508) | |
| PFHd | 7.8×10-8 (T1=20year) : When master slave function is not in use | |
| 1.6×10-7 (T1=20year) : When master slave function is in use | ||
| Housing | Size | 80.0mm (W) , 80.0mm (D) , 95.0mm (H) (without cable) |
| Weight | 0.8kg | |
| Protection | IP65 | |
| Case Material | Body : Aluminum / Optical Window : Polycarbonate | |
| Conenection Cable | Flying lead cable length : 3m | |
| Power supply | DC 24V ±10% : when operating with converter power supply | |
| DC 24V -30%/+20% : when operating with battery | ||
| Supply power | Normal (without load) | 6W |
| Max.(with load) | 50W | |
| Output | OSSD1/2 (Safety) | Output type (High side SW) |
| Output current (Max : 500mA)*3 | ||
| Leak current (Max : 1mA) | ||
| AWG 26 | ||
| Load tolerance (L/R=25ms, C=1μF) | ||
| OSSD3/4(Safety) WARNING 1/2 (Non-Safety) |
Output types (High side SW) Output current : (Max : 250mA)*3 Leak current (Max : 1mA) AWG 28 Load tolerance (L/R=25ms, C=1μF) |
|
| RES_REQ 1 RES_REQ 2 MUT_OUT 1 MUT_OUT 2 |
Output types (PNP Transistor) Output current : (Max : 200mA)*3 Leak current (Max : 1mA) AWG 28 |
|
| Input | Area pattern 32 (5 Inputs × 2 Channels) EDM1/EDM2 MUTING1/MUTING2 MUTING3/MUTING4 OVERRIDE1 OVERRIDE2 RESET1/RESET2 ENC_A1/ENC_A2 ENC_B1/ENC_B2 |
Input Impedance 4.7 kΩ AWG28 |
| Interface | Configuration | USB2.0 (USB micro type-B connector) |
| Data output | Ethernet 100BASE-TX (Water proof connector) | |
| Environmental Resistance | Temperature | -10 to + 50 degrees C (No frost) |
| Storage Temperature | -25 to + 70 degrees C (No frost) | |
| Humidity | 95% RH with no condensation | |
| Storage Humidity | 95% RH with no condensation | |
| Surrounding illumination*4 | Less than 1500lx | |
| Vibration | Frequency range : 10～55 Hz Sweep rate : 1octave/min | |
| Amplitude : 0.35mm ±0.05mm | ||
| Shock resistance | Acceleration : 98m/s2(10G) Pulse duration : 16 ms | |
| Outdoor Operation | Not permitted | |
| Altitude | Below 2000m | |
*2. Additional distance of 200 mm is needed when the UAM is working under high reflective background.
*3. Total current supply of OSSD output and Warning output should be below 1.0A.
*4. When the light sources are located at ≧5° from the detection plane of UAM.

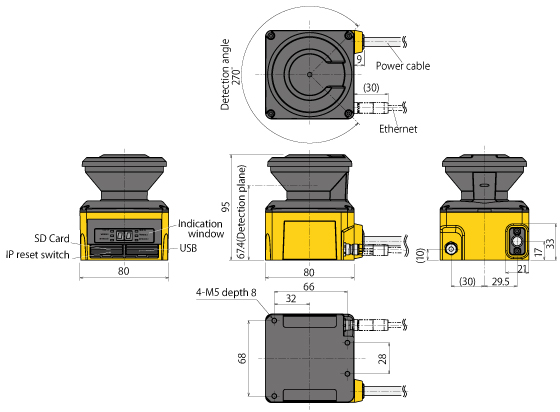

External dimension
Sensor

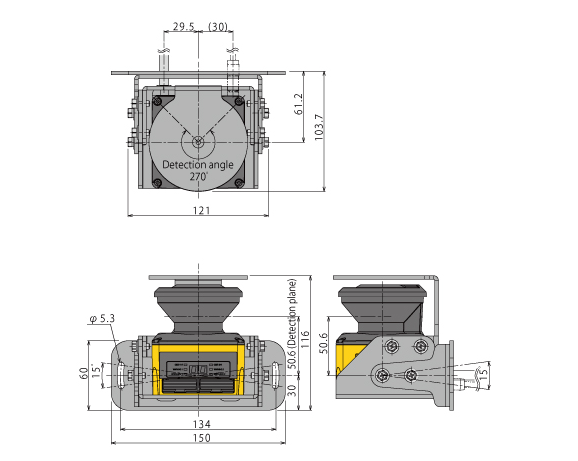

Fixed Condition of Rear mounting bracket with Cover bracket

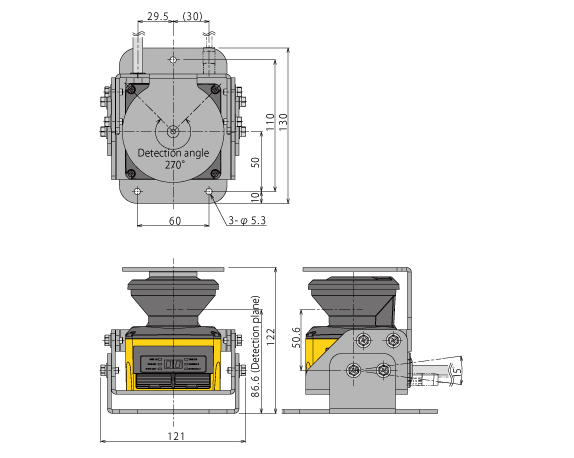

Fixed Condition of Base mounting bracket with Cover bracket
