UGM-50LXP/ UGM-50LXN
Scanning RangefinderDistance Data Output
Maximum detection range is 120 meters and 190 degrees.
The metal housing protects internal system up to 50G(single).
Its protective structure is IP67.
This model is the best choice for Port, Construction and all other outdoor applications.
Overview
Features
Max. detection distance is 120 meters.

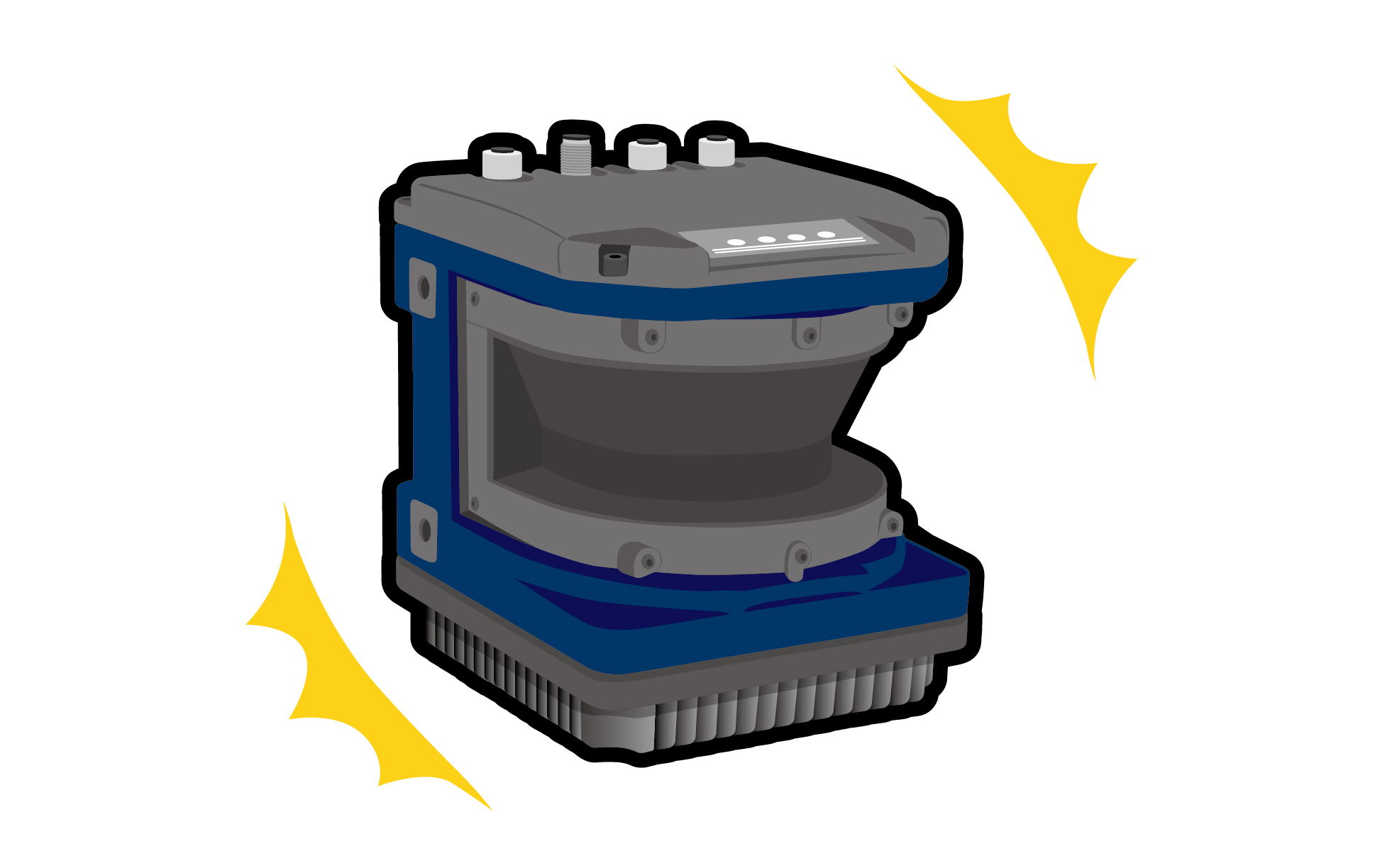

The metal housing protects the internal system.
* Protective structure: IP67
The metal housing protects the internal system.
* Protective structure: IP67
Shock resistance: 50G(Single)
Shock resistance: 50G(Single)
Vibration resistance: 5G
The Best choice for tough application.
Vibration resistance: 5G
The Best choice for tough application.

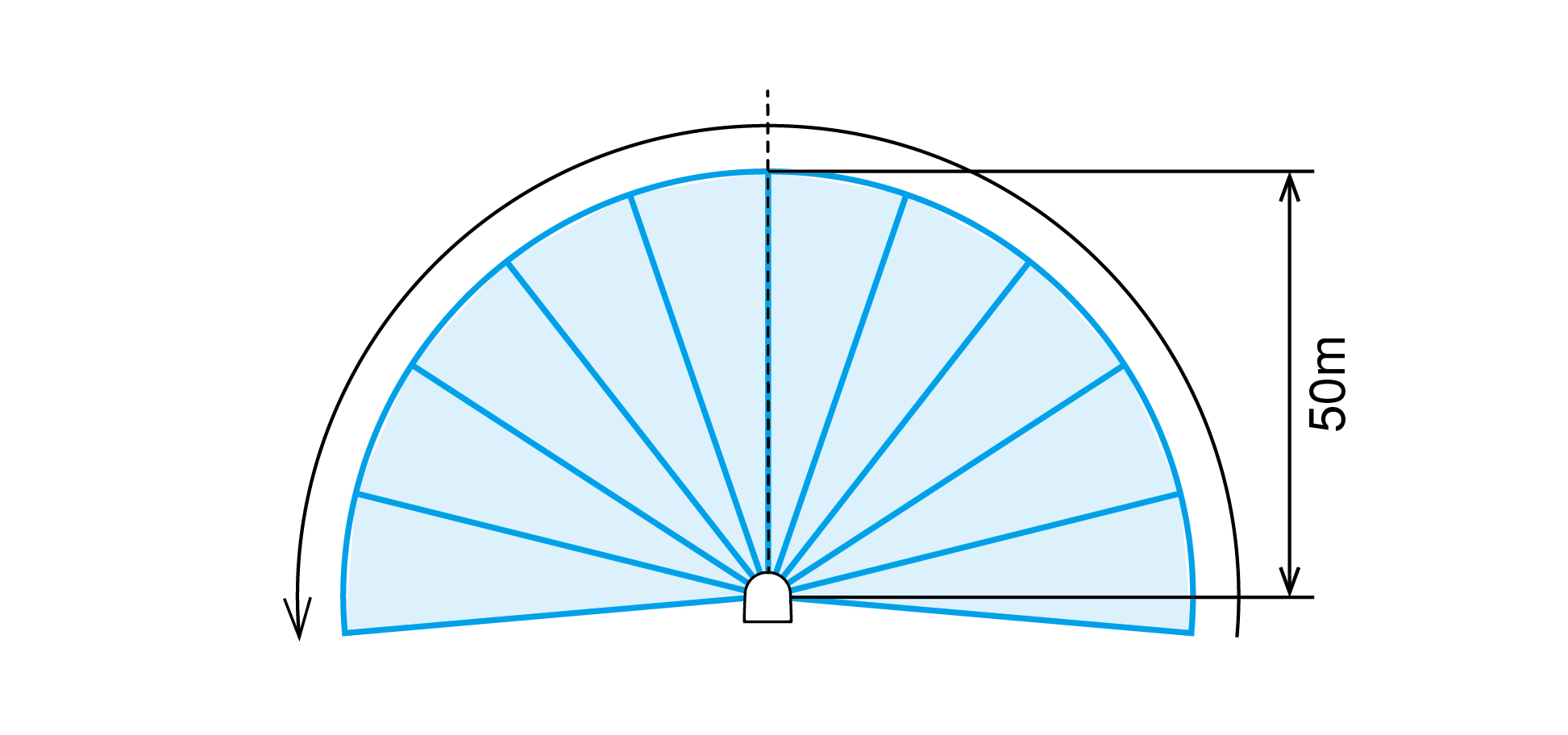

Black object detection at 50meter
White object can be detected at 120 meters.
Even Black object can be detected at 50 meters.
Even Black object can be detected at 50 meters.
Fast and High resolution
20msec （Normal mode 3000rpm） / approx. 0.32°（360°/1125）
40msec （Low speed mode 1500rpm） / approx.0.16° （360°/2250）
80msec （High resolution mode 750rpm）/ approx.0.08° （360°/4500）
40msec （Low speed mode 1500rpm） / approx.0.16° （360°/2250）
80msec （High resolution mode 750rpm）/ approx.0.08° （360°/4500）
Optical window contamination warning function
* The sensor has Contamination detection function,
and it will inform you before the malfunction stop.
and it will inform you before the malfunction stop.

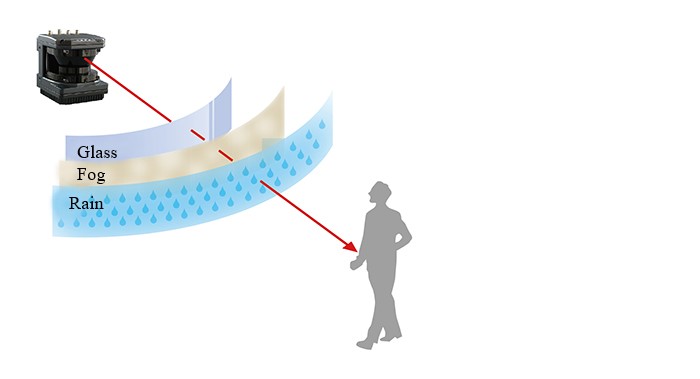

Multi-Echo Function
Multi Echo Functionality is ideal for applications in harsh environments such as rain, snow and fog
Model
Sensor
| Model | Code | Ref. |
| UGM-50LXP | UUGM001 | Data output / PNP type |
| UGM-50LXN | UUGM003 | Data output / NPN type |
Power cable (Option)
| Model | Code | Ref. |
| UGM-4PC005 | UZ00121 | Straight shaped cable 5m |
| UGM-4PCA005 | UZ00136 | L-shaped cable 5m |
Ethernet cable (Option)
| Model | Code | Ref. |
| UGM-ENET005 | UZ00122 | Straight shaped cable 5m |
| UGM-ENETA005 | UZ00137 | L-shaped cable 5m |
I/O #1 (8pins) cable (Option)
| Model | Code | Ref. |
| UGM-8PC005 | UZ00123 | Straight shaped cable 5m |
| UGM-8PCA005 | UZ00138 | L-shaped cable 5m |
I/O #2 (12pins) cable (Option)
| Model | Code | Ref. |
| UGM-12PC005 | UZ00124 | Straight shaped cable 5m |
| UGM-12PCA005 | UZ00139 | L-shaped cable 5m |
Brackets (Option)
| Model | Code | Ref. |
| UGM-BK01 | UZ00125 | Rear mounting bracket |
| UGM-BK02 | UZ00126 | Base mounting bracket |
| UGM-BK03 | UZ00135 | Cover bracket for optical window |
UGM-BK01 (Rear mounting bracket)
UGM-BK02 (Base mounting bracket)
UGM-BK03 (Cover bracket)
Specification
| Product name | Scanning Laser Range Finder |
| Model | UGM-50LXP / UGM-50LXN |
| Light source | Laser semiconductor (905nm) FDA Laser Safety Class 1 (IEC60825-1:2014) |
| Supply voltage | DC 24V±10% |
| Supply current | Steady state current : 1A or less |
| Starting current : 1.5A or less, without Heater*1 | |
| Power consumption | 24W or less (Steady state and current) |
| Heater voltage | DC24V |
| Heater current | Steady state and Starting current : 2A or less, Only Heater*2 |
| Heater power consumption |
48W or less |
| Detection range and object | Guarantee detection range: 0.1m to 50m*3 (10% Reflectance Black paper 500mm×500mm ) |
| 0.1m to 120m*4 (90% Reflectance white Kent paper1400mm×1400mm ) | |
| Maximum detection distance: 120m (Distance output range: 160m) | |
| Minimum detectable size Normal mode: 65mm (5m) , 130mm (10m), 260mm (30m) High Resolution mode: 33mm (5m) , 65mm (10m), 130mm (30m) |
|
| Average Accuracy by distance | 10% Reflectance Black paper 0.1m to 30m ： ±30mm (Indoor 1,000lx or less) 30m to 50m ： ±40mm (Indoor 1,000lx or less) 0.1m to 50m ： ±50mm*5 (Outdoor 100,000lx or less) |
| 90% Reflectance white Kent paper 0.1m to 50m ： ±30mm 0.1m to 50m ： ±50mm*5 (Outdoor 100,000lx or less) |
|
| Measurement resolution |
1mm |
| Repeat accuracy | 10% Reflectance Black paper 0.1m to 30m ：σ < 9mm (Indoor 1,000lx or less) 30m to 50m ：σ < 15mm (Indoor 1,000lx or less) 0.1m to 50m ：σ < 15mm*5 (Outdoor 100,000lx or less) |
| 90% Reflectance white Kent paper 0.1m to 50m ：σ < 9mm (Indoor 1,000lx or less) 0.1m to 50m ：σ < 15mm*5 (Outdoor 100,000lx or less) |
|
| Scanning angle | 190° |
| Scan speed/ Angular resolution |
20ms*6 (Normal mode 3000rpm) / approx. 0.32°(360°/1125) |
| 40ms*6 (Low speed mode 1500rpm) / approx.0.16° (360°/2250) | |
| 80ms*6 (High resolution mode 750rpm) / approx.0.08° (360°/4500) | |
| Start up time | Within 30 sec after power supply |
| Outputs | 4 PNP/NPN OUTPUT :Synchronization master output, Synchronization output, Malfunction output, Contamination output (Open collector output DC30V 50mA MAX.) |
| Output response time |
40msec or less (Normal mode) 80msec or less (Low speed mode) 160msec or less (High resolution mode) In either case, change depending upon the delay setting |
| Inputs | 3 INPUT : Synchronous input, IP Reset input, Reboot input (Photo coupler input, Cathode/Anode common, Input ON current 2mA) |
| Interface | Ethernet 100BASE-TX (Auto-negotiation) |
| LED display | 4 LEDs (Yellow Green, Orange, Blue, Red) |
| Ambient temperature and humidity |
-10 to +50°C below 85%RH -30 to +50°C below 85%RH (While using the heater) (Without dew, frost) |
| Environment effect | A measured distance will be shorter than an actual distance under the influence of rain, snow and direct sunlight.*7 |
| Vibration resistance | 10 to 150Hz 5G (IEC60068-2-6:2007) |
| Shock resistance | 3 times 50G, 1000 times 25G (IEC60068-2-27:2008) |
| EMC standards |
(EMI) EN61326-1:2013 EN55011:2009 + A1:2010 (EMS) EN61326-1:2013 EN61000-4-2:2009 EN61000-4-3:2006 + A1:2008 + A2:2010 EN61000-4-4:2012 EN61000-4-6:2009 EN61000-4-8:2010 |
| Protective structure | IP67 (IEC60529:2001) |
| Insulation resistance | 10MΩ |
| Weight | Approx. 4.2kg (without connection cables) |
| Material | Optical window : Polycarbonate, Body : Aluminum |
| Dimensions(W×D×H) |
155mm × 166mm × 176mm (Without connector) External dimension：MC40-03391 |
*1 When a heater power is not connected or OFF.
*2 This is the current consumption of only heater.
Details of heater operation is described in Specification.
*3 Indoor environment (under fluorescent lamps, 1,000 lx or less)
*4 In the high resolution mode(750rpm), the guarantee detection range is 120m.
*5 Detection cannot be guaranteed when direct light (such as sunlight) enters into the inside of the product.
*6 You must restart the sensor after changing the scan speed.
*7 Please check the influence of ambient environment on the detection accuracy using a product.

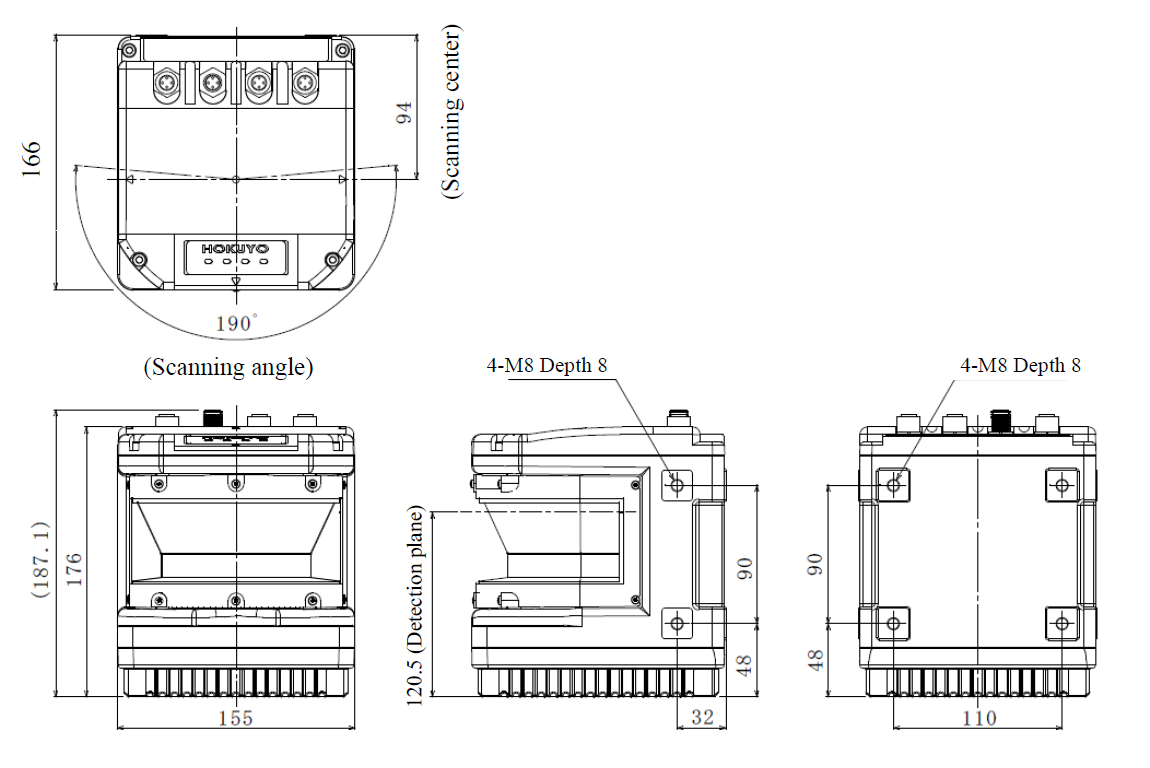

External dimension
UGM-50LXP / UGM-50LXN

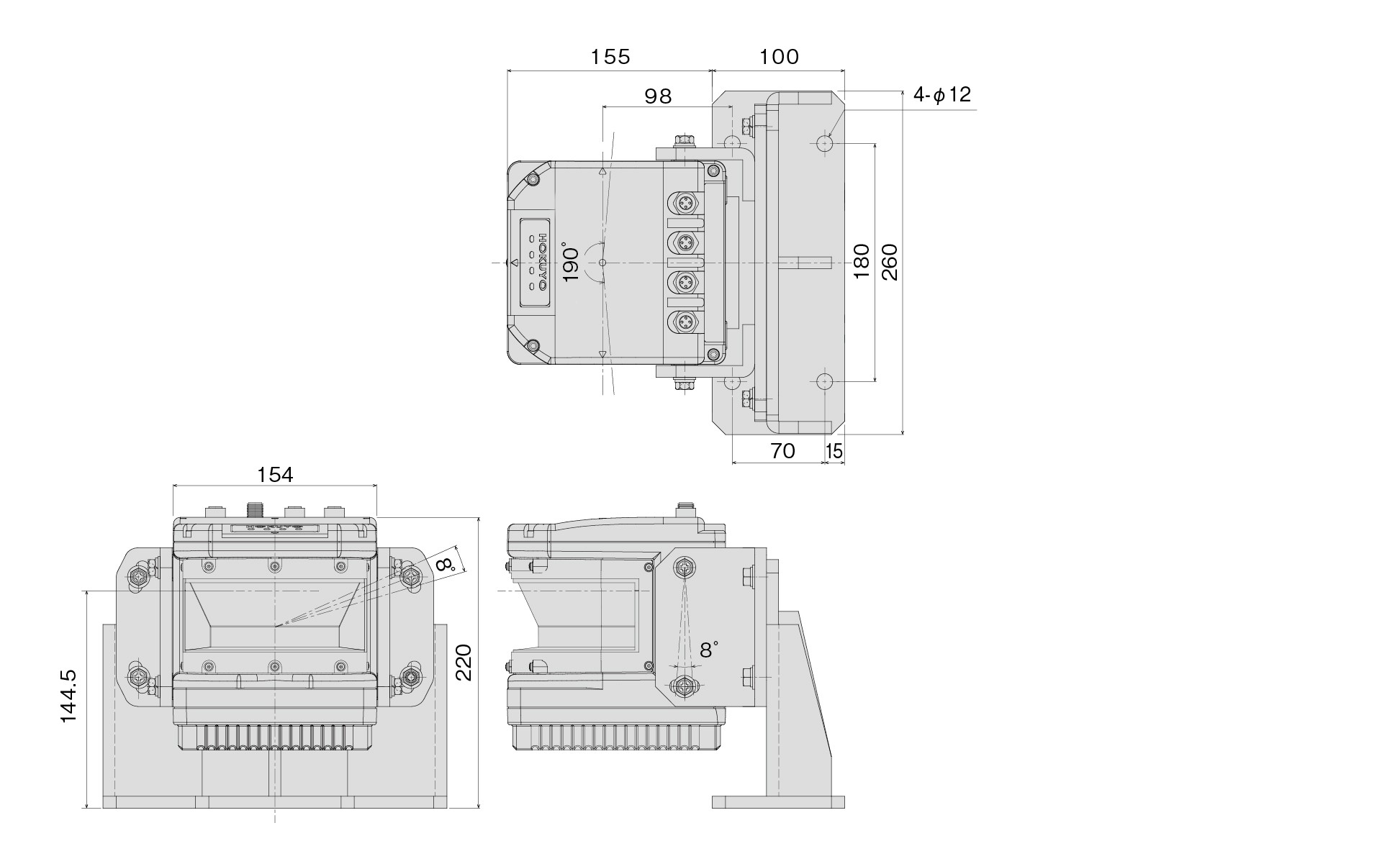

Rear mounting bracket

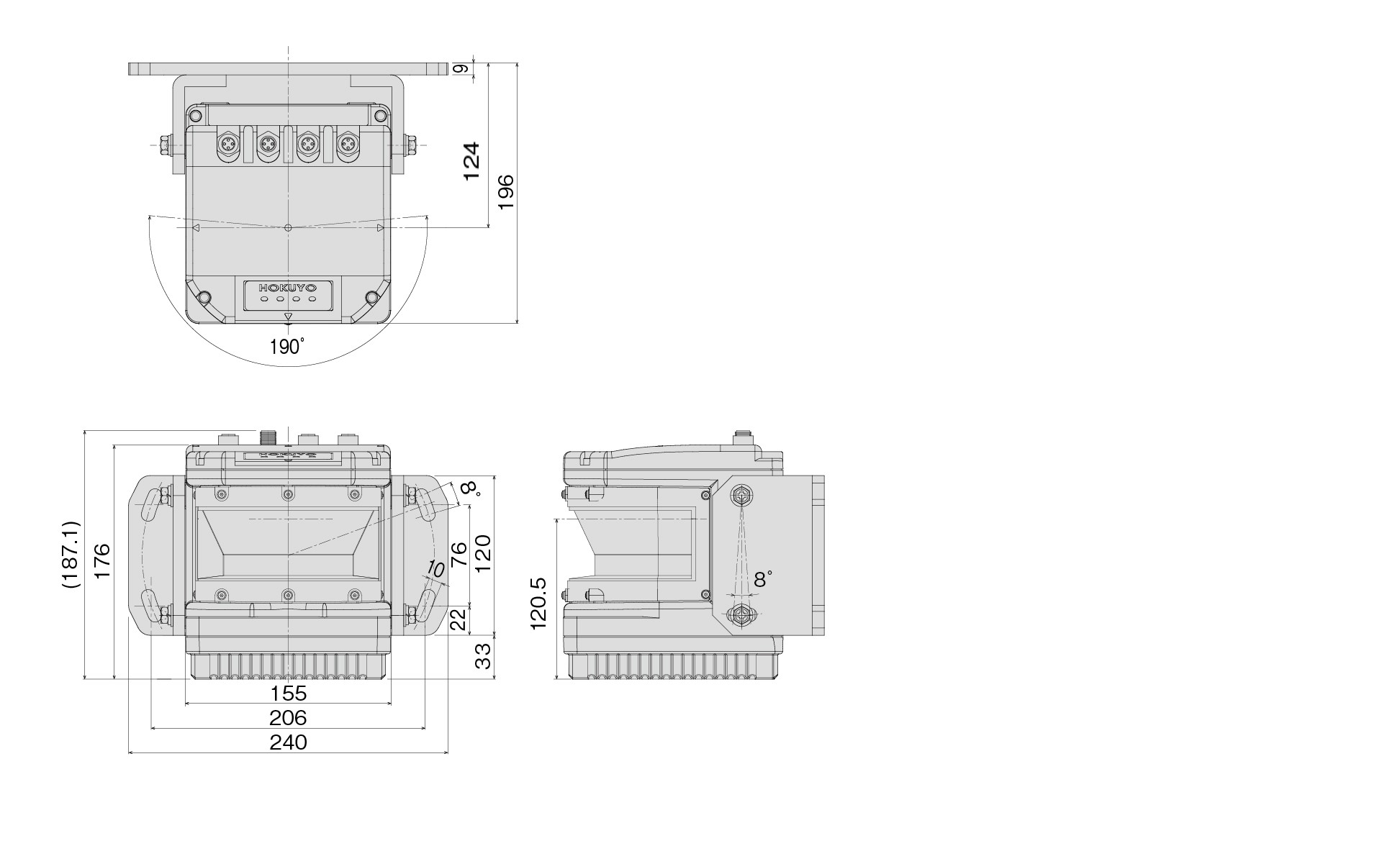

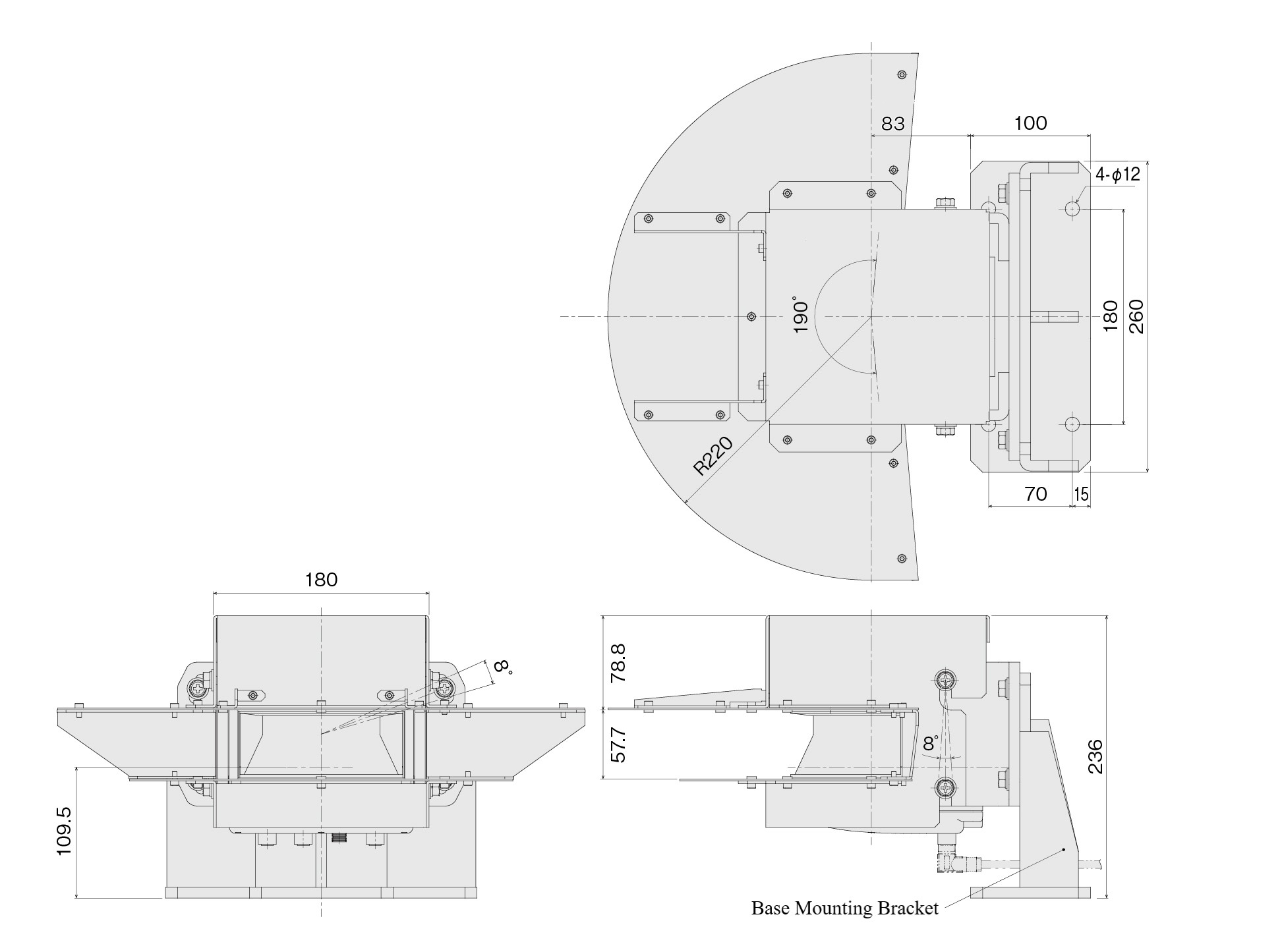

Base mounting bracket

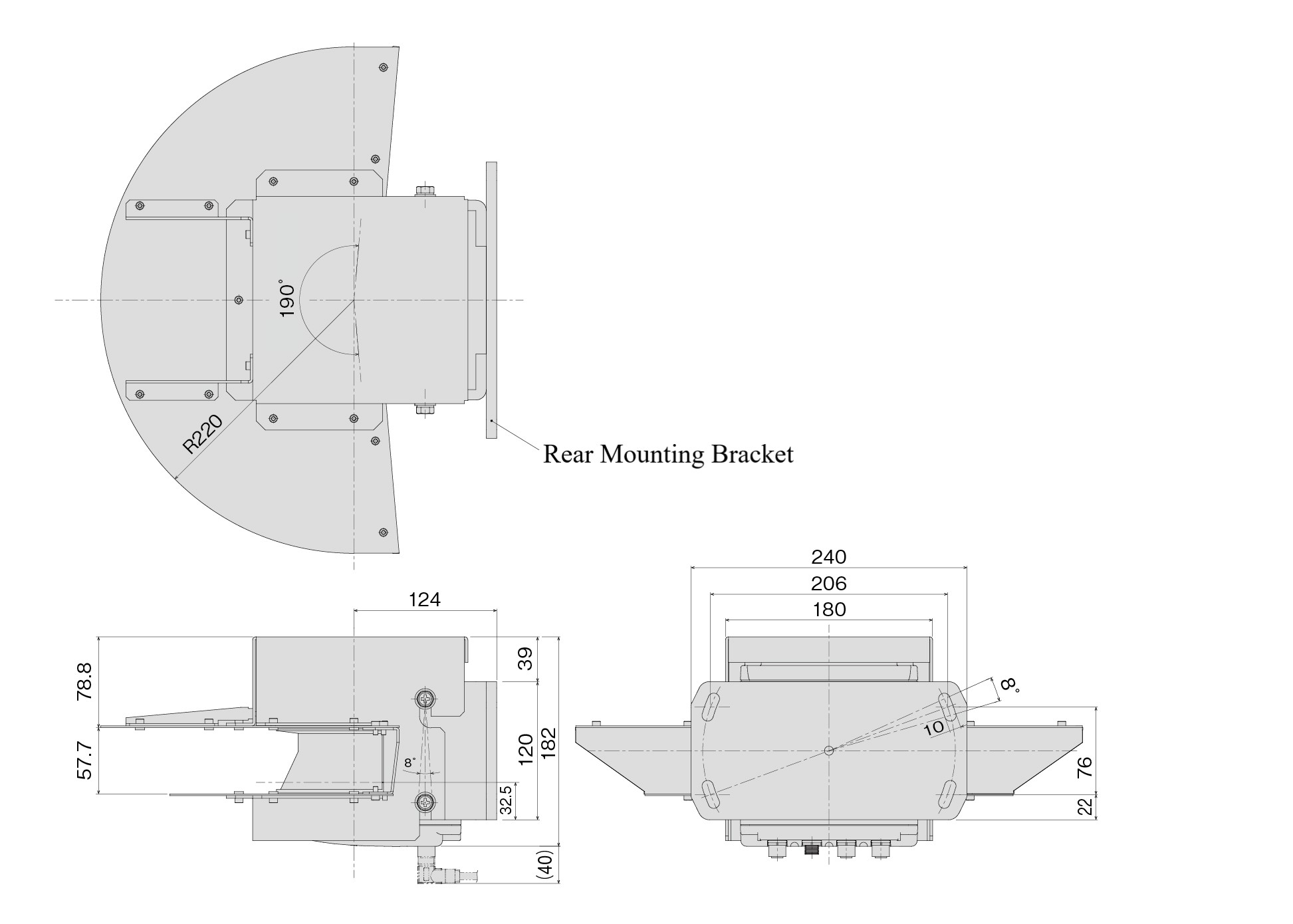

Cover with rear mounting bracket
Cover with base mounting bracket

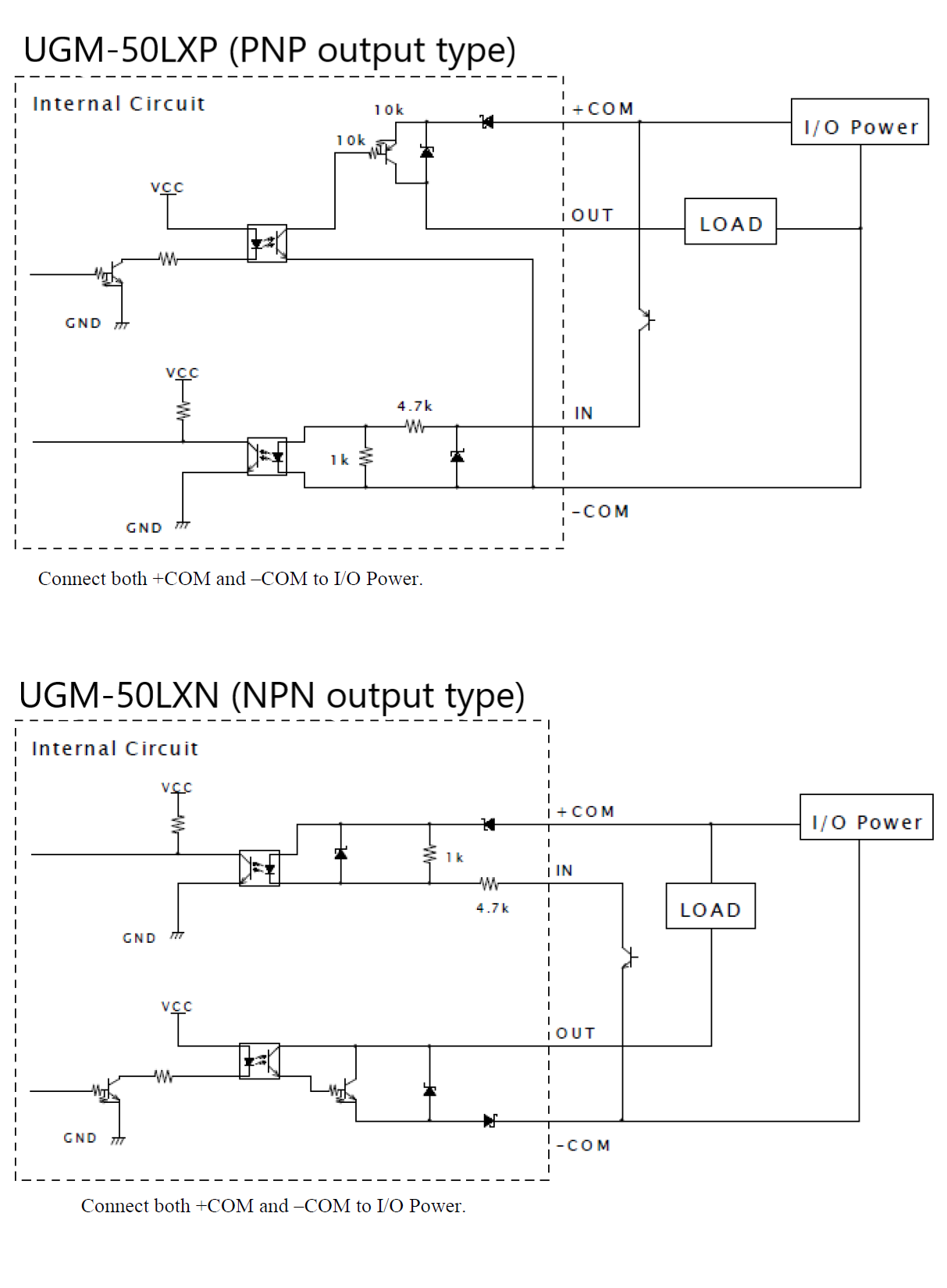

I/O Circuit
Input/Output Circuit
Input: Photocoupler input (Cathode/Anode common, 2mA during each input ON, 0.5 mA or below during OFF)
Output：Open-collector output
Output：Open-collector output
| Item | Specification |
| Maximum Output current | 50mA |
| Maximum voltage | 30V |
| Output residual voltage | 1V or less |
| +COM Power supply range | 24±10%V |

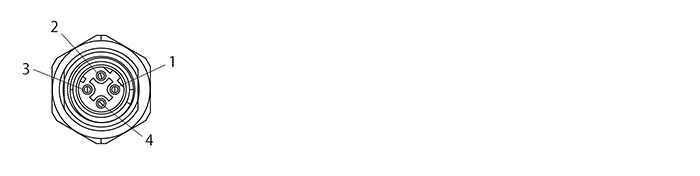

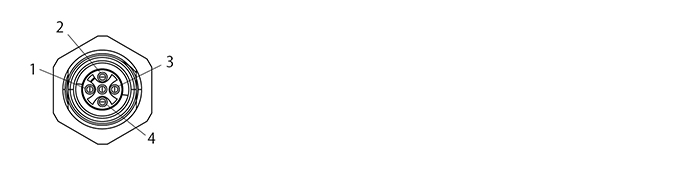

Power supply connector
M12 4 core A-code socket (Female)
| PIN No. | Function | Color |
| 1 | Sensor power supply +V (24V±10%) |
Brown |
| 2 | Heater power supply (24V±10%) |
White |
| 3 | Sensor power supply GND -V (0V) |
Blue |
| 4 | Heater power supply GND(0V) |
Black |
Ethernet connector
M12 4 core D-code plug (Male)
| PIN No. | Function | Color |
| 1 | TX+ | Orange |
| 2 | RX+ | Green |
| 3 | TX- | Orange/White |
| 4 | RX- | Green/White |
I/O #1 connector
I/O1 : M12 8 core A-code socket (Female)
| PIN No. | Function | I/O | Color |
| 1 | Reboot | IN | Brown |
| 2 | IP Reset | IN | White |
| 3 | Synchronization input | IN | Orange |
| 4 | Synchronization output | OUT | Yellow |
| 5 | Synchronization master output | OUT | Green |
| 6 | NC | - | Blue |
| 7 | +COM | - | Purple |
| 8 | -COM | - | Black |

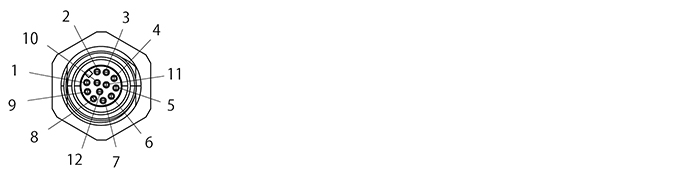

I/O #2 connector
I/O2 : M12 12 core A-code socket (Female)
| PIN No. | Function | I/O | Color |
| 1 | Contamination output | OUT | Brown |
| 2 | NC | - | Black |
| 3 | Malfunction output | OUT | Red |
| 4 | - | - | Orange |
| 5 | - | - | Yellow |
| 6 | - | - | Green |
| 7 | - | - | Blue |
| 8 | - | - | Purple |
| 9 | - | - | Gray |
| 10 | - | - | White |
| 11 | +COM | - | Pink |
| 12 | -COM | - | Light Green |
