Products Detail
BNC
Optical Data Transmission DeviceParallel type
Data transfer checker can check the interlocking on SEMI E84 beforehand !
Overview
Features
Data transfer checker consists of the following proucts:
-> BNC-HB1 Head : 1 pce
-> EPK-BNC1 Power box : 1 pce
-> AC adaptor with cable 2m : 1 pce
-> Cable 300mm for BNC-HB1(for PC connector) : 1 pce
-> Application software(SFOC/RIS) : 1pce
-> BNC-HB1 Head : 1 pce
-> EPK-BNC1 Power box : 1 pce
-> AC adaptor with cable 2m : 1 pce
-> Cable 300mm for BNC-HB1(for PC connector) : 1 pce
-> Application software(SFOC/RIS) : 1pce
Specification
| BNC-HB1 Head | Model No. | BNC-HB1(with cable 300mm) |
| Direction | SIDE-ON | |
| Transmission distance | 300mm | |
| EPK-BNC1 | Model No. | EPK-BNC1 |
| Power source | Built-in rechargeable battery(Charging from AC Adaptor) | |
| Battery life | Approx. 4 hours(When continuous use) | |
| Charging time | Approx. 16 hours | |
| Cable for BNC-HB1 | 300mm EIA-574(RS-232C 9 pins connector)*1 | |
| BNC-HB1 Application software *2 |
Hokuyo Data Flex SFOC | Communication data(Logging data) is read out from DMG series |
| Hokuyo Data Flex RIS | It is possible to make data communication as imaginary UTV(AGV, RGV, OHT etc.) or fixed passive equipments under automatic transportation system. | |
*2 Ask about the details of specifications.
External dimension

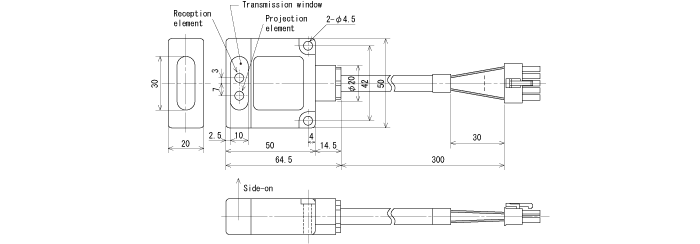

BNC-HB1(Head)

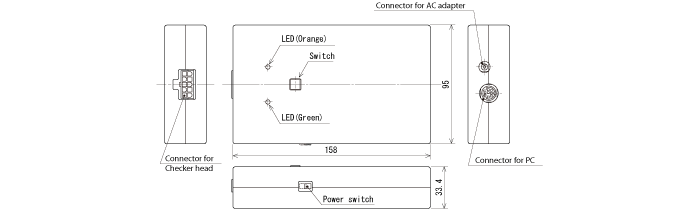

EPK-BNC1(Power box)

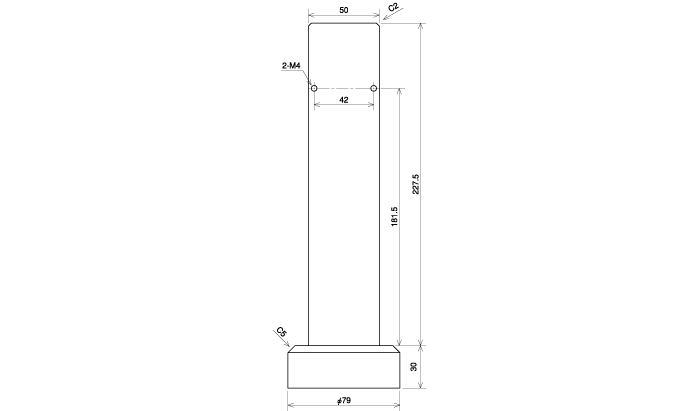

BNC-001(BKT)
