DMS-G/H-V
Optical Data Transmission DeviceParallel type
The Optical Data Transmission Device to meet the needs of compactness and lightness. Body size 50x50x20mm is only half of our previous model DM series. Weight 210g is much lighter than before.
Overview
Features
This is Optical Data Transmission Device (Parallel I/O) suitable for such as interlocking with carrier robots, indicating destination of AGVs.
＊This is small size and right weight with 50*50*20mm.
＊This device provides light-projecting amount adjuster, and it can adjust the communicating range by it.
＊This is small size and right weight with 50*50*20mm.
＊This device provides light-projecting amount adjuster, and it can adjust the communicating range by it.
Easy friendly to control with parallel signals
This products have parallel signals of maximum 8 points each for input and output, it does not require difficult signal processing.

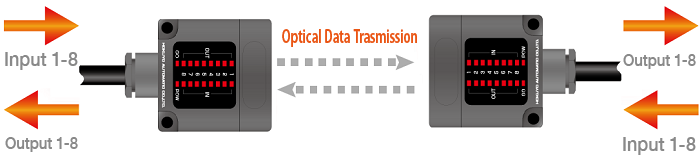

Communicable with wireless between AGVs and Stations
This performs transmission using optical light, so it is possible to communicate wirelessly with mobile vehicles that are hard to lay cables.
It can be used for communication to between the stations and mobile vehicles like AGVs to instruct the destination where the vehicles should go.
2 types of optical axis direction selectable based on the installation way

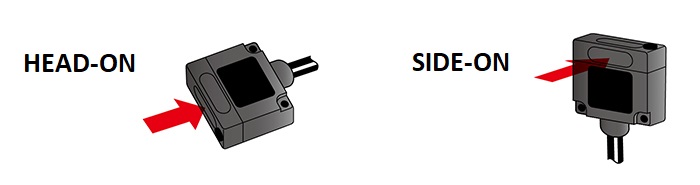

2 types of HEAD-ON and SIDE-ON are lined up.
Model
| Model number | Code number | Directional mounting | Transmission distance | Signals |
| DMS-GA1-V | WDMS006 | Head-on | 1m | 4-bit |
| DMS-GA2-V | WDMS015 | 3m | ||
| DMS-GB1-V | WDMS004 | 1m | 8-bit | |
| DMS-GB2-V | WDMS013 | 3m | ||
| DMS-HA1-V | WDMS007 | Side-on | 1m | 4-bit |
| DMS-HA2-V | WDMS016 | 3m | ||
| DMS-HB1-V | WDMS005 | 1m | 8-bit | |
| DMS-HB2-V | WDMS014 | 3m |
Specification
| Type | Parallel type | |||||||
| 4-bit type | 8-bit type | |||||||
| Model No. | DMS- GA1-V |
DMS- GA2-V |
DMS- HA1-V |
DMS- HA2-V |
DMS- GB1-V |
DMS- GB2-V |
DMS- HB1-V |
DMS- HB2-V |
| Directional mounting | Head-on | Side-on | Head-on | Side-on | ||||
| Transmission distance | 0 to 1m | 0 to 3m | 0 to 1m | 0 to 3m | 0 to 1m | 0 to 3m | 0 to 1m | 0 to 3m |
| Directional angle (Full angle) | 30° | 10° | 30° | 10° | 30° | 10° | 30° | 10° |
| Transmission method | Half-duplex two-way transmission | |||||||
| Transmission time | 40msec or less | |||||||
| Modulation method | Pulse modulation | |||||||
| Detection method | Parity check | |||||||
| Power source | 24VDC(10 to 30VDC) | |||||||
| Input | Contact or open-collector(ON current 2.5mA or more, | |||||||
| OFF current 1mA or less, Operating threshold current 1.5 to 2mA) | ||||||||
| Output | NPN open-collector(30VDC, 50mA or less, Residual voltage 1.8V or less) | |||||||
| Current consumption | 100mA Max. | |||||||
| Ambient illuminance | 4,000lux or less(Incandescent lamp) | |||||||
| Ambient temperature/humidity | -10 to +50° C, 85%RH or less | |||||||
| Impact resistance | 500m/s2, each 10 time in X, Y and Z directions | |||||||
| Connection | Lead wire 2m long | |||||||
| Protective structure | IP64(IEC standard) | |||||||
External dimension

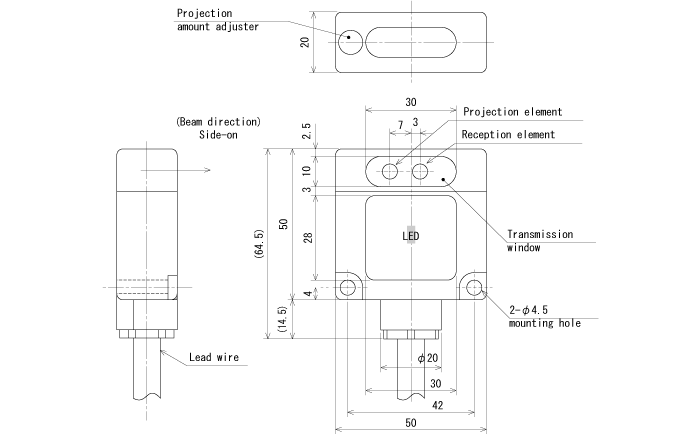

DMS-HA1-V/HA2-V, DMS-HB1-V/HB2-V(SIDE-ON type)

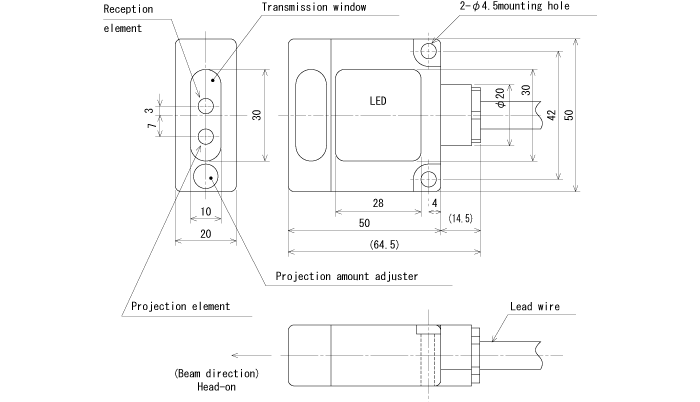

DMS-GA1-V/GA2-V, DMS-GB1-V/GB2-V(HEAD-ON type)
I/O Circuit

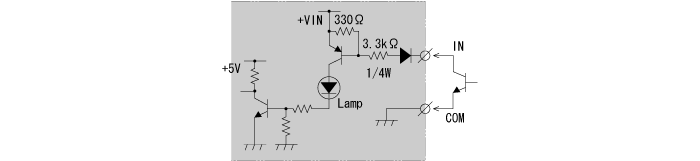

Input
ON current 2.5mA or more,
OFF current 1mA or less,
Note) Don't use the sensor with 2-wire.
Operating threshold current 1.5 to 2mA
OFF current 1mA or less,
Note) Don't use the sensor with 2-wire.
Operating threshold current 1.5 to 2mA

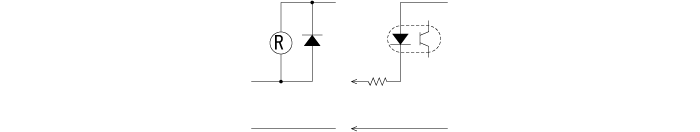

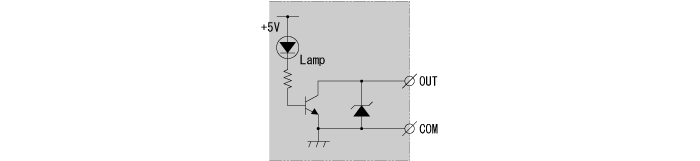

Output
NPN open-collector output
30VDC 50mA
Residual voltage 1.8V or less
Input/ output circuit
Connection
DMS-GA1-V/GA2-V, DMS-HA1-V/HA2-V(4-bit type)
| Colors | Pin No. | Functions |
| Black | 1 | IN1 |
| Brown | 2 | IN2 |
| Red | 3 | IN3 |
| Orange | 4 | IN4 |
| White/yellow | 5 | MODE*1 |
| Yellow | 6 | SELECT*2 |
| White/blue | 7 | NC |
| Green | 8 | OUT1 |
| Blue | 9 | OUT2 |
| Purple | 10 | OUT3 |
| Gray | 11 | OUT4 |
| White | 12 | GO*3 |
| Yellow/green | 13 | COM(0V) |
| Yellow/red | 14 | +VIN |
| Yellow/black | 15 | -VIN(0V) |
| Shield | Shield | |
Connection
DMS-GB1-V/GB2-V, DMS-HB1-V/HB2-V(8-bit type)
*1 MODE input
This is to choose transmission/reception mode when standing by
*Transmission stand-by mode by opened between mode and I/O COM
*Reception stand-by mode by short-circuited between mode and I/O COM
*2 SELECT input
This is to stop transmission/reception optionally by outer signal
*Operating by opened between select and I/O COM
*Stopping by short-circuited between select and I/O COM
*3 GO output
This is to check correct optical single
*ON when receiving correct optical axis
*OFF when interrupting optical axis(Not-receiving)
Note) Cable ends for unused input/output, GO output, SELECT input, MODE input, NC(4-bit type) should be processed individually and don't connect with other cable.
It may cause unstable operation if package processing.
Note) Don't use the connector attached to the cables as connecting terminal.
Note) If one side is set to transmission stand-by mode, other one should be set to reception standby mode.
Caution
I/O direction is appeared in accordance with DMS.

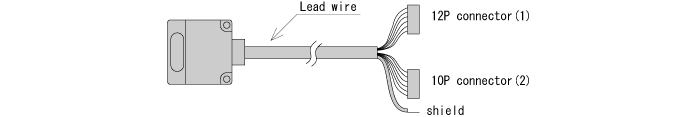

| Connector (1) | Connector (2) | |||||
| Colors | Pin No. | Functions | Colors | Pin No. | Functions | |
| Pale blue | 1 | COM(0V) | Green | 1 | IN5 | |
| Pink | 2 | MODE*1 | Green/black | 2 | OUT5 | |
| White | 3 | SELECT*2 | Blue | 3 | IN6 | |
| White/black | 4 | GO*3 | Blue/black | 4 | OUT6 | |
| Brown | 5 | IN1 | Purple | 5 | IN7 | |
| Brown/black | 6 | OUT1 | Purple/black | 6 | OUT7 | |
| Red | 7 | IN2 | Gray | 7 | IN8 | |
| Red/black | 8 | OUT2 | Gray/black | 8 | OUT8 | |
| Orange | 9 | IN3 | Pink/black | 9 | +VIN | |
| Orange/black | 10 | OUT3 | Pale blue / black | 10 | -VIN | |
| Yellow | 11 | IN4 | Shield | Shield | ||
| Yellow/black | 12 | OUT4 | ||||
*1 MODE input
This is to choose transmission/reception mode when standing by
*Transmission stand-by mode by opened between mode and I/O COM
*Reception stand-by mode by short-circuited between mode and I/O COM
*2 SELECT input
This is to stop transmission/reception optionally by outer signal
*Operating by opened between select and I/O COM
*Stopping by short-circuited between select and I/O COM
*3 GO output
This is to check correct optical single
*ON when receiving correct optical axis
*OFF when interrupting optical axis(Not-receiving)
Note) Cable ends for unused input/output, GO output, SELECT input, MODE input, NC(4-bit type) should be processed individually and don't connect with other cable.
It may cause unstable operation if package processing.
Note) Don't use the connector attached to the cables as connecting terminal.
Note) If one side is set to transmission stand-by mode, other one should be set to reception standby mode.
Caution
I/O direction is appeared in accordance with DMS.
