Products Detail
UTM-30LX-EW
Scanning RangefinderDistance Data Output
SOKUIKI sensor for intelligent robots
Overview
Features
-> Supply voltage 12V
-> Measurement distance 30m
-> Field of view 270°
-> Interface Ethernet
-> Multi-echo
-> Protective structure IP67
-> Measurement distance 30m
-> Field of view 270°
-> Interface Ethernet
-> Multi-echo
-> Protective structure IP67
Specification
| Model | UTM-30LX-EW |
| Light Source | Laser Semiconductor λ = 905nm Laser Class 1 |
| Power Source | 12VDC ± 10% |
| Supply Current | MAX : 1A, Normal : 0.7A |
| Power Consumption | Less than 8W |
| Detection Range and Detection Object | Guaranteed Range: 0.1 to 30m(White Kent Sheet)*2 Maximum Range: 0.1 to 60m Minimum detectable width at 10m: 130mm(Vary with distance) |
| Accuracy | 0.1 to 10m : ±30mm,10 to 30m : ±50mm(White Kent Sheet)*2 Under 3000lx : White Kent Sheet : ±30mm*1(0.1 to 10m) Under 100000lx : White Kent Sheet : ±50mm*1(0.1 to 10m) |
| Measurement Resolution and Repeated Accuracy | 1mm 0.1 to 10m : σ<10mm,10 to 30m : σ<30mm(White Kent Sheet)*2 Under 3000lx : σ=10mm*1(White Kent Sheet up to 10m) Under 100000lx : σ=30*1(White Kent Sheet up to 10m) |
| Scan Angle | 270° |
| Angular Resolution | 0.25°(360°/1440) |
| Scan Speed | 25ms(Motor speed : 2400rpm) |
| Interface | Ethernet 100BASE-TX(Auto-negotiation) |
| Output | Synchronous Output 1-Point |
| LED Display | Green : Power supply. Red : Normal Operation(Continuous),Malfunction(Blink) |
| Ambient Temperature | -10 to +50 degrees C |
| Ambient Humidity | Less than 85%RH(Without Dew,Frost) |
| Storage Temperature | -25 to +75 degrees C |
| Environmental Influence | Measured distance will be shorter than the actual distance under rain, snow and direct sunlight*2. |
| Vibration Resistance | 10 to 55Hz Double amplitude 1.5mm in each X, Y, Z axis for 2hrs. 55 to 200Hz 98m/s2 sweep of 2min in each X, Y, Z axis for 1hrs. |
| Impact Resistance | 196m/s2 In each X, Y, Z axis 10 times. |
| Protective Structure | Optics: IP67(Except Ethernet connector) |
| Insulation Resistance | 10MΩ DC500V Megger |
| Weight | 210g (Without cable) |
| Case | Polycarbonate |
| External Dimension (W×D×H) |
62mm×62mm×87.5mm |
*2 Indoor environment with less than 1000lx.
Please perform necessary tests with the actual device in the working environment.
Use data filtering techniques to reduce the effect of water droplets when detecting objects under the rain.

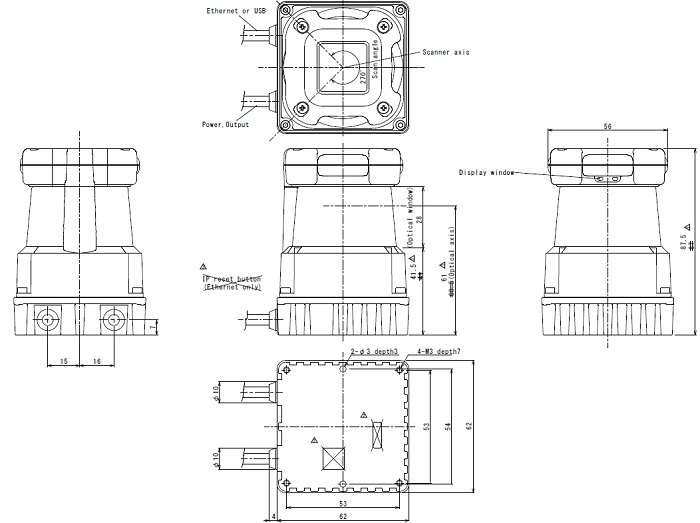

External dimension
External dimension
Downloads
Before Download
Only members can download the file.
If you have not registered as a member, please register as a member by clicking the "Registration".
If you are already a member, please agree to the following terms and click the "Agree".
If you have not registered as a member, please register as a member by clicking the "Registration".
If you are already a member, please agree to the following terms and click the "Agree".
License for Downloading Materials
When downloading the product specifications, drawings and various types of materials and software related to the Hokuyo's product line, please read the terms of use in advance and then utilize the same with your understanding and consent. In case of dissent, please understand that you cannot register to and be recognized in the download page. (And the Terms of Use may be revised without prior notice.)
Terms of Use
- Intellectual Property Rights
-
- Copyrights and the other rights to contents such as sentences, data and software published on this Website (hereinafter referred to as "Contents") are held by Hokuyo or its suppliers.
- The secondary application (copy, diversion, defacement, analysis, transmission, assignment, rental, licensing, and usage for the purpose of business activities or commercial gain) of the Contents on this Website posted by Hokuyo is strictly prohibited without our prior approval. Specific terms of use described for each download site or Contents shall apply in preference to the Terms of Use.
- Provision of the Contents on this Website by Hokuyo means neither a transfer of the patent rights, design rights, and/or the other intellectual property rights to inventions and designs in the Contents, nor a grant of any rights based on the intellectual property rights.
- Disclaimer
-
Hokuyo pays full attention to the information that appears on this Website, but does not take responsibility for the following items:
- The information that appears on this Website is always the latest version, and is updated or corrected timely and properly;
- The information that appears on this Website is accurate, useful and safe;
- Customer's damage incurred by the use of this Website, including changes or deletions of the information, discontinuation or suspension of the publication; and
- Any and all damage incurred by using this Website.
Download List
| Category | File name | File size | Date modified | Download |
|---|---|---|---|---|
 |
Catalog_UTM-30LX-EW |
--- |
2017-04-11 |
|
 |
Specifications_UTM-30LX-EW |
--- |
2022-06-06 |
|
|
External Dimension_UTM-30LX-EW_FEW |
--- |
2022-06-06 |
|
 |
2DCAD_UTM-30LX-EW_FEW |
--- |
2022-06-06 |
|
 |
3D CAD_UTM-30LX-EW_FEW |
--- |
2022-06-06 |
|
|
Communication Protocol Specifications_UTM-30LX-EW |
--- |
2017-04-11 |
|
 |
Instruction Manual_UTM-30LX-EW |
--- |
2022-06-06 |
|
|
IP Changing ToolAbout the IP change tool For UTM-30LX-EW Ver1.3.1 or later and UTM-30LX-FEW version Ver1.1.1 or later : Please use the latest UrgBenriPlus. |
--- |
2022-07-05 |
|
|
Data Viewing Tool_UrgBenriPlus_2.3.2(rev.343) |
--- |
2024-07-22 |
Programming
Please visit this website for programming guide.
