| Product name |
Laser range finder |
| Type |
UXM-30LXH-EHA |
| Light source |
Semiconductor laser, λ=905nm, safety class of the laser = 1 |
| Power supply voltage |
10 to 30VDC |
| Power supply current |
Steady-state current: 600mA or less at 12VDC, 300mA or less at 24VDC
Starting current: 1.5A or less at 12VDC, 0.75A or less at 24VDC
Heater in use(0°C or below): 1.25A or less at 12VDC, 1.25A or less at 24VDC |
| Electric power consumption |
7.2W or less(at steady-state)
Heater in use(0°C or below: 15W or less at 12VDC, 30W or less at 24VDC) |
| Detecting distance and object to be detected |
Guaranteed value of detection:
0.1 to 30m*1(Reflectance of 10%, black paper, 500mm×500mm)
0.1 to 80m*1(Reflectance of 90%, white Kent paper, 1,000mm×1,500mm)
Maximum detecting distance: 120m
Minimum object to be detected: 33mm(5m), 65mm(10m), 200mm(30m) |
| Average accuracy by distance |
10% reflectance, black paper, 0.1 to 15m:±30mm, 15 to 30m:±50mm*1
0.1 to 30m:±50mm*2 Ambient illuminance: 3,000 lux or less
0.1 to 20m:±50mm*2 Ambient illuminance: 100,000 lux or less |
90% reflectance, white Kent paper, 0.1 to 30m:±30mm*1
0.1 to 30m:±50mm*2 Ambient illuminance: 3,000 lux or less
0.1 to 20m:±50mm*2 Ambient illuminance: 100,000 lux or less |
| Measurement resolution |
Unit of 1mm |
| Repeat accuracy |
10% reflectance, black paper, 0.1 to 15m: σ<10mm, 15 to 30m: σ<15mm*1
0.1 to 30m: σ<20mm*2 Ambient illuminance: 3,000lux or less
0.1 to 20m: σ<30mm*2 Ambient illuminance: 100,000lux or less |
90% reflectance, white Kent paper, 0.1 to 30m: σ<10mm*1
0.1 to 30m: σ<15mm*2 Ambient illuminance: 3,000lux or less
0.1 to 30m: σ<30mm*2 Ambient illuminance: 100,000lux or less |

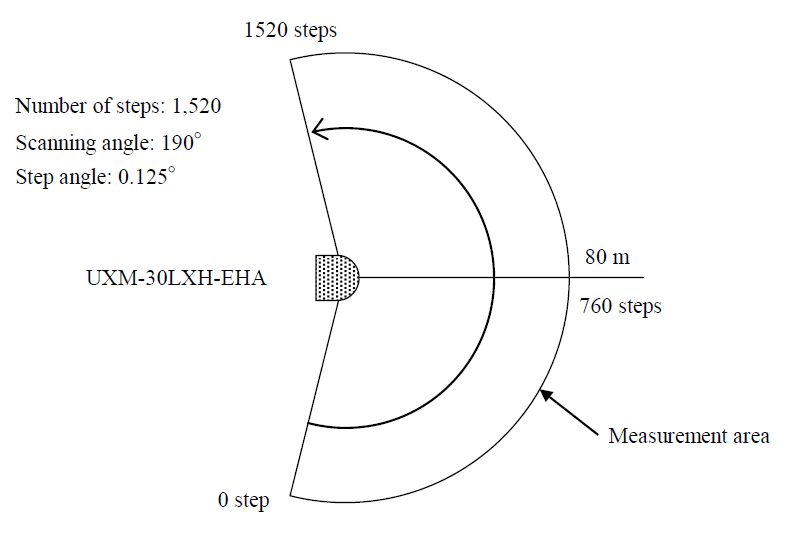

| Scanning angle |
190° |
| Angular resolution |
Approx. 0.125°(360°/2880 divisions) |
| Scanning time |
50ms(rotating speed of motor: 1200rpm) |
| Interface |
Ethernet 100BASE-TX(Auto-negotiation) |
| Output |
OUTPUT 3 points: Synchronization master output, synchronization output, failure output |
| Input |
INPUT 1 points: Synchronization input |
| Starting time |
Operation starts within 30sec after turning on of power supply. |
| Indication lamp |
Indication lamp for power supply and operation(green), indication lamp for communication measurement(orange)
Regarding the operation of indication lamps, refer to sub-clause 7.2. |
| Ambient operating temperature, humidity |
-10 to +50°C 85%RH(However, dew condensation and freezing should not exist.) |
| Resistance to weather |
Detecting distance becomes shorter due to rain, snow, and sunlight.*3 |
| Vibration resistance |
10 to 55Hz, plural amplitude: 1.5mm in X, Y, Z directions, each 2 hours |
| 55 to 200Hz 19.6m/s2 Sweep: 2 minutes in X, Y, Z directions, each 1 hour |
| Resistance to shock |
196m/s2 in X, Y, Z directions, each 10 times |
| Protective structure |
IP67 |
| Insulation resistance |
10MΩ |
| Mass |
1200g |
| Material |
Front face of the case, optical windows: Polycarbonate, Back face of the case: Aluminum |
Outside dimension
(W×D×H) |
124mm × 126mm × 150mm(connector not included) |
