Products Detail
YLM-X001
Scanning RangefinderDistance Data Output
3D range sensor (3D LiDAR)
Fully solid-state mechanical-less drive
Distance: 0.1m to 10m
Field of View: Max.120°(H) x 90°(V)
Resolution: QVGA (320 x 240) *High resolution mode VGA (640 x 480)
Ideal for applications such as AGV/AMR and service robots
ROS-compatible
Prototype (limited quantity)
Mass production planned for early 2024
Overview
Completely mechanical-less Hokuyo's new challenge
Hokuyo takes on new challenges with new technology
In collaboration with Lumotive, we have jointly developed a range sensor (LiDAR) using completely solid-state beam steering without using any mechanism. It is mechanical-less, so it has a long life and is hard to break down.Solid state beam steering LCM
LCM (Light Control Metasurface)
Digital scanning of line light laser VCSEL Laser with liquid crystal deflection (LCM) without using any mechanical parts. Since LCM can reduce multipath interference and inter-sensor interference compared to ToF cameras, measurement is stable. It provides new value that could not be realized with conventional mechanical scanning technology.
*LCM is a unique technology patented by Lumotive.
https://www.lumotive.com/technology
Digital scanning of line light laser VCSEL Laser with liquid crystal deflection (LCM) without using any mechanical parts. Since LCM can reduce multipath interference and inter-sensor interference compared to ToF cameras, measurement is stable. It provides new value that could not be realized with conventional mechanical scanning technology.
*LCM is a unique technology patented by Lumotive.
https://www.lumotive.com/technology
Specification
Detection distance: 0.1m to 10m (reflectance 10%, under 100,000 lx)
Field of View: 120° (H) x 90° (V) Vertical angle can be changed dynamically with software
Distance accuracy: Distance x 0.5% (e.g. 25mm at 5m, under 100,000lx)
Frame rate: 10Hz or more
Resolution: QVGA (320 x 240) (VGA (640 x 480) in high resolution mode)
Angular resolution: 0.375° or less (0.188° in high resolution mode)
Interface: Ethernet (1000Base-T)

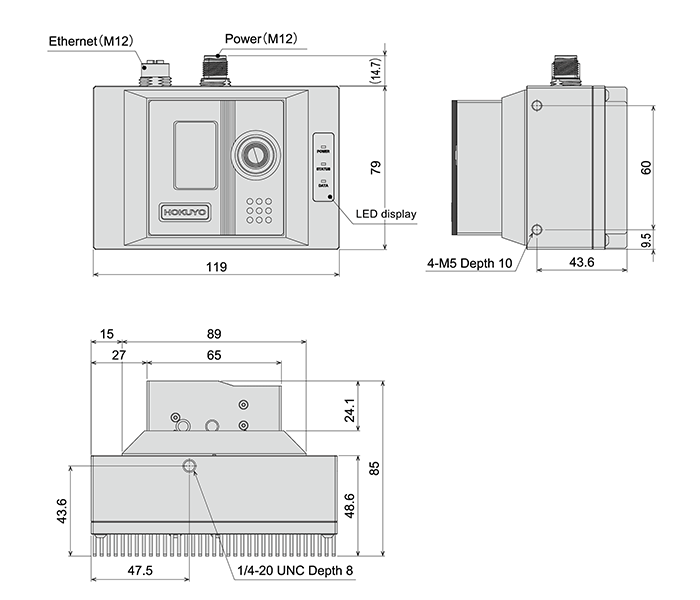

Size: 119(W) x 85(D) x 79(H) mm (in case of prototype YLM-X001)
Field of View: 120° (H) x 90° (V) Vertical angle can be changed dynamically with software
Distance accuracy: Distance x 0.5% (e.g. 25mm at 5m, under 100,000lx)
Frame rate: 10Hz or more
Resolution: QVGA (320 x 240) (VGA (640 x 480) in high resolution mode)
Angular resolution: 0.375° or less (0.188° in high resolution mode)
Interface: Ethernet (1000Base-T)
Size: 119(W) x 85(D) x 79(H) mm (in case of prototype YLM-X001)
Digital scan
Digital scanning compared to mechanical scanning
Flexible random scanning of resolution, detection range, and frame rate
Flexible random scanning of resolution, detection range, and frame rate

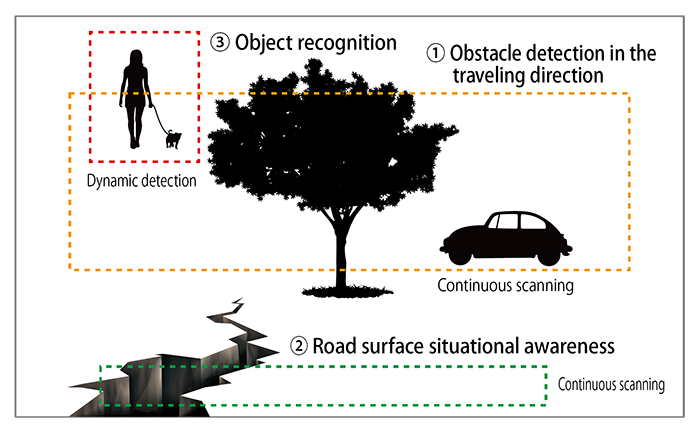

Multiple fields of view (FoV) can be set
Taking advantage of the features of digital scanning, multiple fields of view (FoV) can be scanned simultaneously.
It is also possible to scan only a specific place or object at the same time.
Application
It can be applied to AMR, AGV, 3D obstacle detection and road surface condition detection for service robots.
Check on YouTube
Inquiry
Please contact us from the inquiry form below for purchasing or any question.
---> Inquiry Form
---> Inquiry Form
