UST-30LX
Scanning RangefinderDistance Data Output
Outdoor LiDAR for intelligent robots
The size is very small and it has high accuracy with outdoor.
Overview
Features
-> The smallest and the lightest of its kind, 130g
-> Mid-detection range 30m, Wide detection angle 270, Fast response 25msec, High angular resolution 0.125°
-> It is possible to detect size, position and the moving direction of objects.
Outdoor model
-> Mid-detection range 30m, Wide detection angle 270, Fast response 25msec, High angular resolution 0.125°
-> It is possible to detect size, position and the moving direction of objects.
Outdoor model

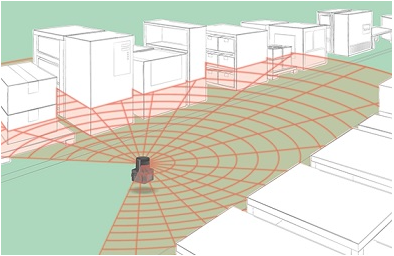

Mapping
UST-30LX can be used with ROS

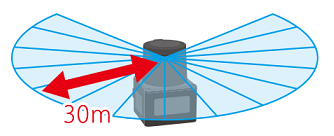

Very Small and Wide Range (30 meter)
UST-30LX is very small as well as the indoor model,
but UST-30LX can detect at 30 meter away.
anti-ambient light (100,000lx)
Please avoid the direct sunlight

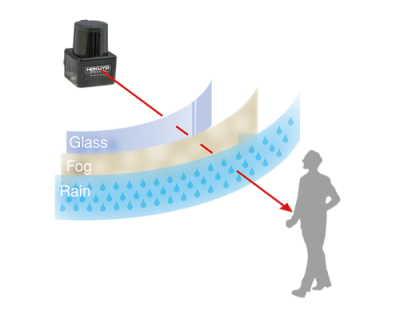

Multi-echo function ( Special for Outdoor)
Multi-echo function will detect the several layer of object, such as glass and fog.
anti-dirtiness
This image is just for reference.
Specification
| Product name | Laser range finder |
| Model | UST-30LX |
| Supply voltage | 12VDC/24VDC (operation range 10 to 30V ripple within 10%) |
| Supply current | 150mA or less (during start up 450mA is necessary) |
| Light source | Semiconductor laser, λ=905nm, safety class of the laser = 1 |
| Detection range | 0.05m to 30m (white Kent sheet) 0.05m to 12m (diffuse reflectance 10% ) Maximum detection distance : 180m(@10m), 350mm(@20m), 520mm(@30m) |
| Accuracy | +/-40mm *1 |
| Repeated accuracy | σ<20mm *1 |
| Scan angle | 270° |
| Scan speed | 25ms (Motor speed 2400rpm) |
| Angular resolution | 0.25°/ 0.125°*2 |
| Start up time | Within 10 sec (start up time differs if malfunction is detected during start up) |
| Output | Synchronous Output, photo coupler open collector output 30VDC 50mA MAX |
| Interface | Ethernet 100BASE-TX |
| LED display | Power supply LED display(Blue) : Blinks during start up and malfunction state |
| surrounding intensity | Less than 100,000lx Note : Avoid direct sunlight or other illumination sources as it may cause sensor malfunction |
| Ambient temperature and humidity | -30°C to +50°C, below 85%RH (without dew, frost) |
| Storage temperature and humidity | -30°C to+70°C, below 85%RH (without dew,frost) |
| Vibration resistance | 10 to 55Hz double amplitude of 1.5mm for 2hrs in each X, Y, and Z direction 55 to 200Hz 98m / s2(10G) sweep of 2min for 1hr in each X,Y and Z direction |
| Shock resistance | 196m/s2 (20G) X,Y and Z direction 10 times |
| EMC standards | (EMI) EN61326-1：2013 EN55011：2009 + A1：2010 (EMS) EN61326-1:2013 EN61000-4-2:2009 EN61000-4-3:2006 + A1：2008 + A2：2010 EN61000-4-4:2012 EN61000-4-6:2009 EN61000-4-8:2010 |
| RoHS | (EU)2015/863 |
| Protective structure | IP67 |
| Weight | 130g(Excluding cable) |
| Material | Front case: Polycarbonate, Rear case: Aluminum |
| Dimensions (W×D×H) | 50×50×70mm(sensor only) |
*2. Angular resolution of 0.125 and 0.25 can be switched by LXSettingTool software.
This function is only available to the product code of UUST2**. (firmware version：4.0.0 or later)

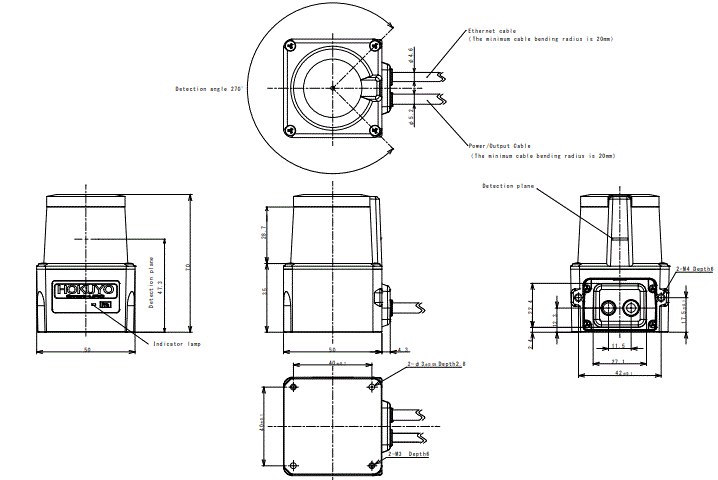

External dimension
External Dimension

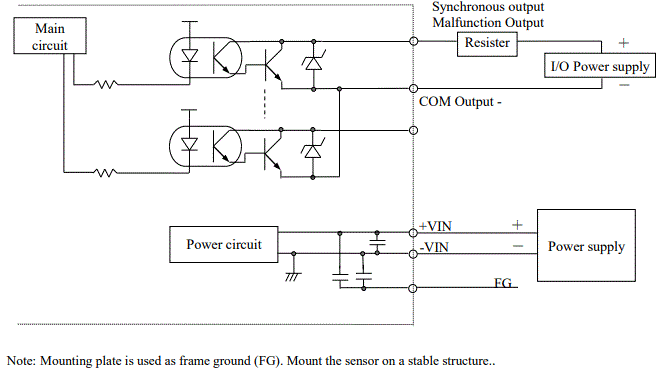

I/O Circuit
I/O circuit
